Item 3: Heater Control Valve Assembly and Bracket Installation Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the vacuum hose to the heater control valve assembly.

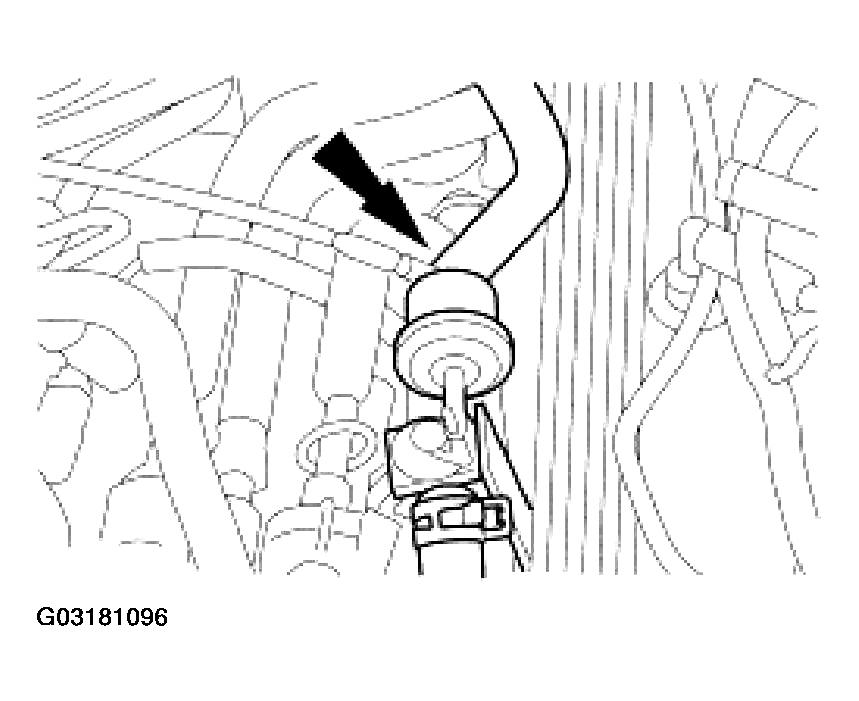

    Fig 1: Installing Heater Control Valve Assembly And Bracket
    G03181096Courtesy of FORD MOTOR CO.
