Removal and Installation

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the evaporative emissions (EVAP) canister purge valve. For additional information, refer to FUEL SYSTEM .
  2. Remove the parts in the order indicated in the following illustrations and tables.

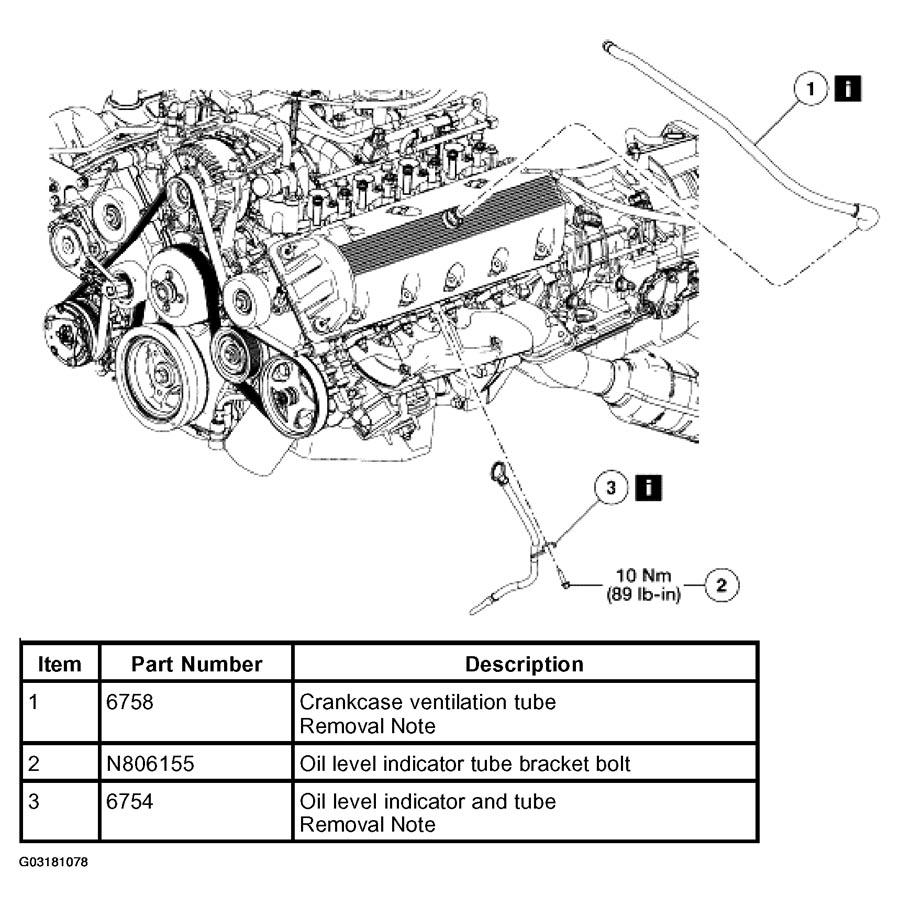

    Fig 1: Removing Crankcase Ventilation Hose And Oil Dipstick Tube
    G03181078Courtesy of FORD MOTOR CO.

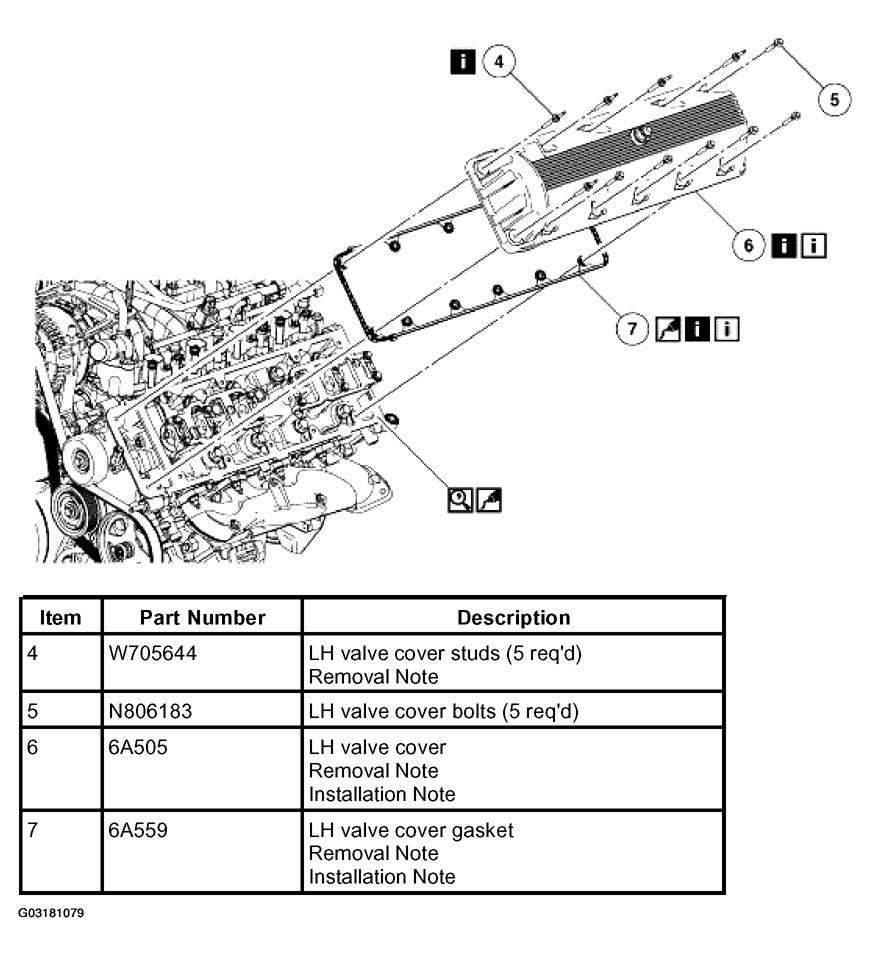

    Fig 2: Removing LH Valve Cover
    G03181079Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
