Items 7-6: LH Valve Cover Installation Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. If a new gasket is being installed, apply instant adhesive completely around the gasket groove in the valve cover.
    2. NOTE: If the valve cover is not secured within four minutes, the sealant must be removed and the sealing area cleaned with metal surface cleaner. Failure to follow this procedure can cause future oil leakage.

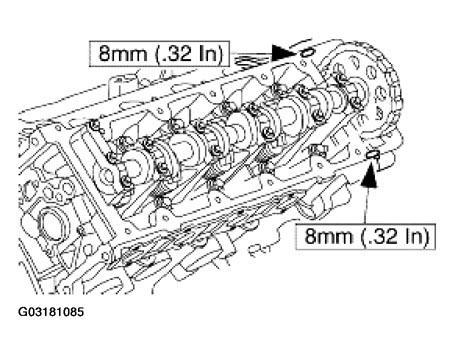

    Fig 1: Applying Silicone Gasket And Sealant
    G03181085Courtesy of FORD MOTOR CO.
  2. Apply the silicone gasket and sealant in two places where the engine front cover meets the cylinder head.
  3. Tighten the valve cover bolts in the sequence shown.

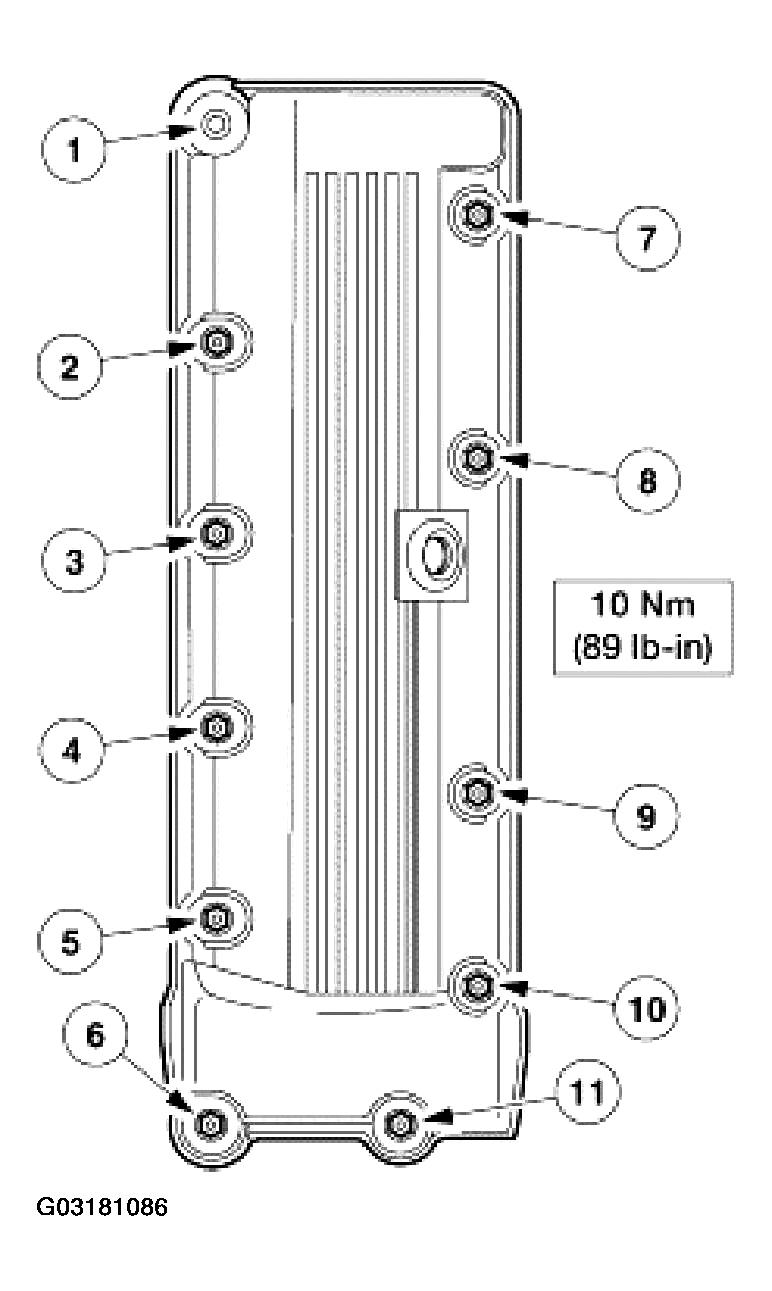

    Fig 2: Tightening Valve Cover Bolts In Sequence Shown
    G03181086Courtesy of FORD MOTOR CO.
  4. Connect the LH engine wiring harness retainers to the valve cover studs.

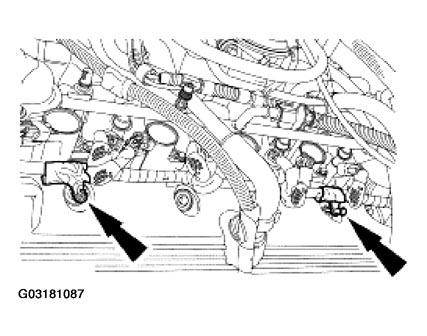

    Fig 3: Connecting LH Engine Wiring Harness Retainers To Valve Cover Studs
    G03181087Courtesy of FORD MOTOR CO.
