Item 4: LH Valve Cover Studs Removal Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the LH engine wiring harness retainers from the valve cover studs.

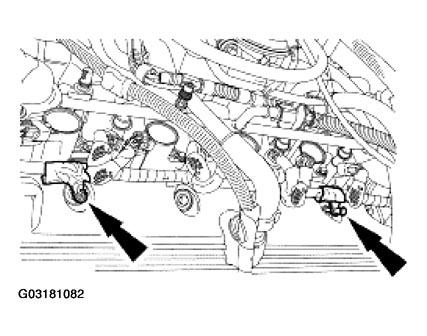

    Fig 1: Disconnecting LH Engine Wiring Harness Retainers From Valve Cover Studs
    G03181082Courtesy of FORD MOTOR CO.
  2. Position the left side of the fuel charging wiring harness away from the valve cover.
    3. NOTE: There are several kinds of bolts used in fastening the valve cover. The bolts must be installed in their original locations.

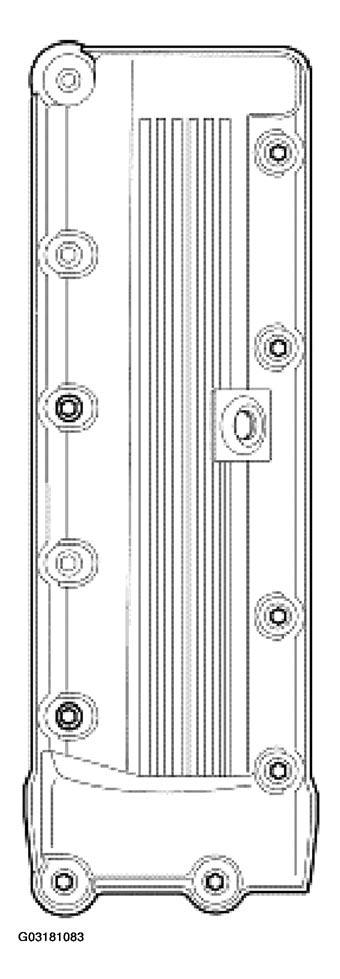

    Fig 2: Identifying Valve Cover Bolts
    G03181083Courtesy of FORD MOTOR CO.
  3. Loosen the studs.
