Item 8: Vacuum Hose Assembly Removal Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the heater control vacuum supply hose.

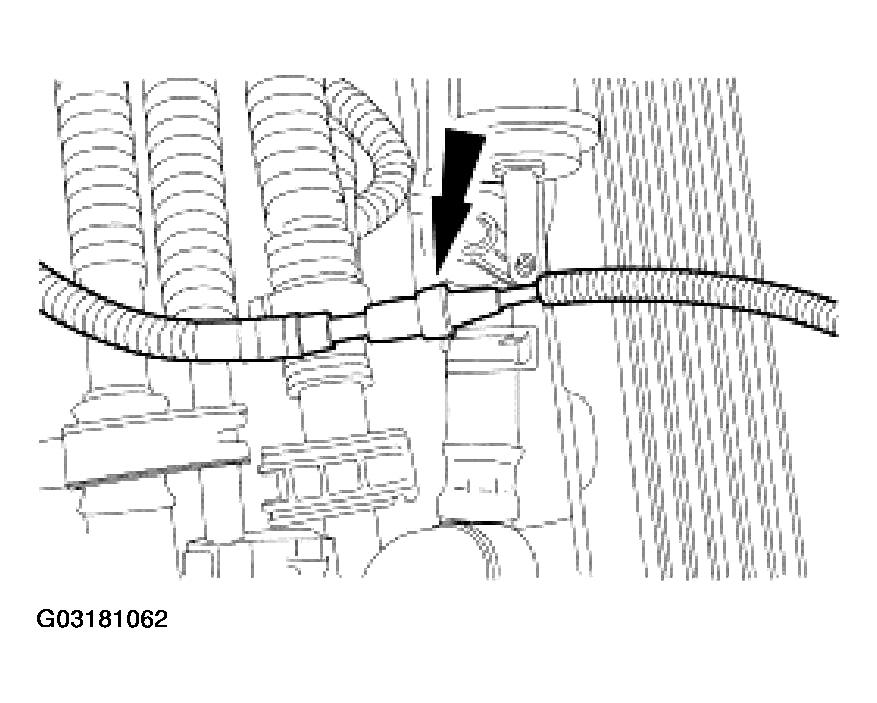

    Fig 1: Disconnecting Heater Control Vacuum Supply Hose
    G03181062Courtesy of FORD MOTOR CO.
  2. Disconnect the vacuum tube from the throttle body adapter.

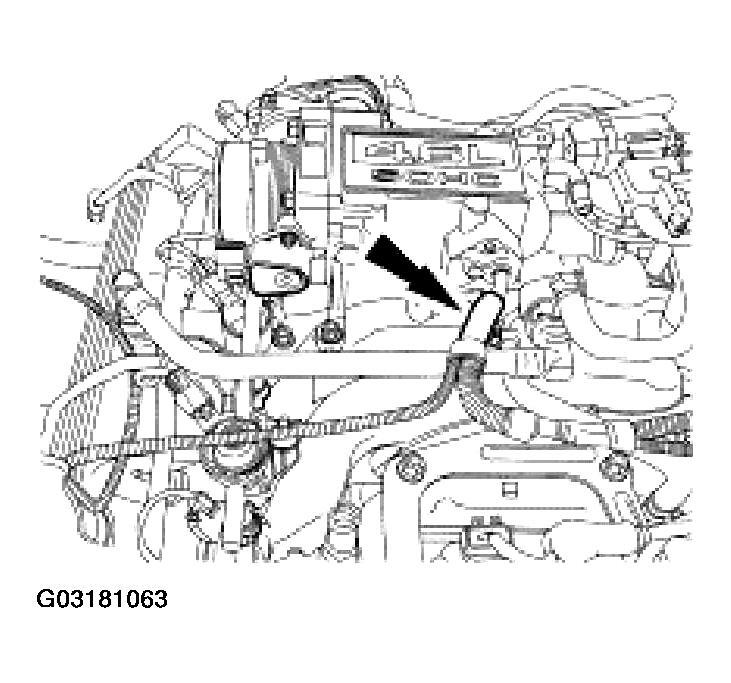

    Fig 2: Disconnecting Vacuum Tube From Throttle Body Adapter
    G03181063Courtesy of FORD MOTOR CO.
  3. Disconnect the EGR system module and fuel pressure sensor vacuum fittings.
    • Remove the vacuum harness from the engine.

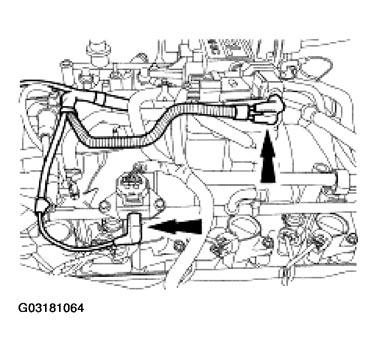

    Fig 3: Removing Vacuum Harness From Engine
    G03181064Courtesy of FORD MOTOR CO.
