Item 23: Intake Manifold Bolts Installation Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Tighten the bolts in the sequence shown.

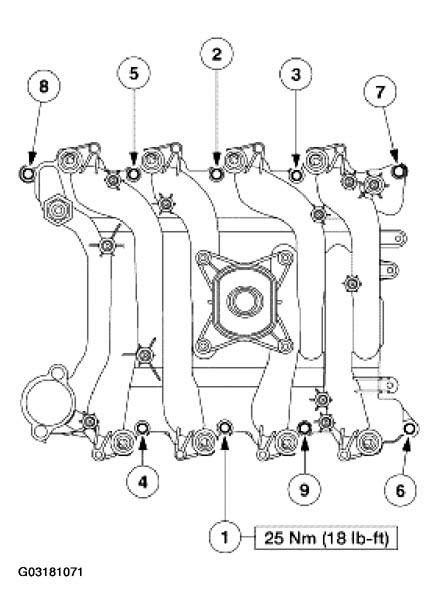

    Fig 1: Installing Intake Manifold Bolts
    G03181071Courtesy of FORD MOTOR CO.
    2. NOTE: Apply dielectric compound to the inside of the coil boots.

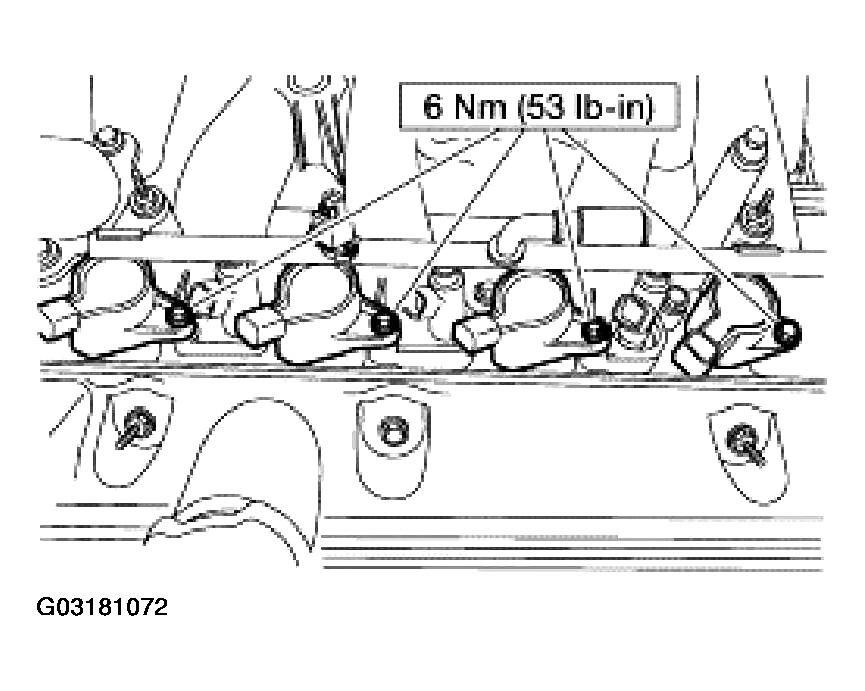

    Fig 2: Installing Ignition Coils
    G03181072Courtesy of FORD MOTOR CO.
  2. Install all eight ignition coils.
  3. Attach the wire harness locators and the KS electrical connector to the back of the intake manifold.

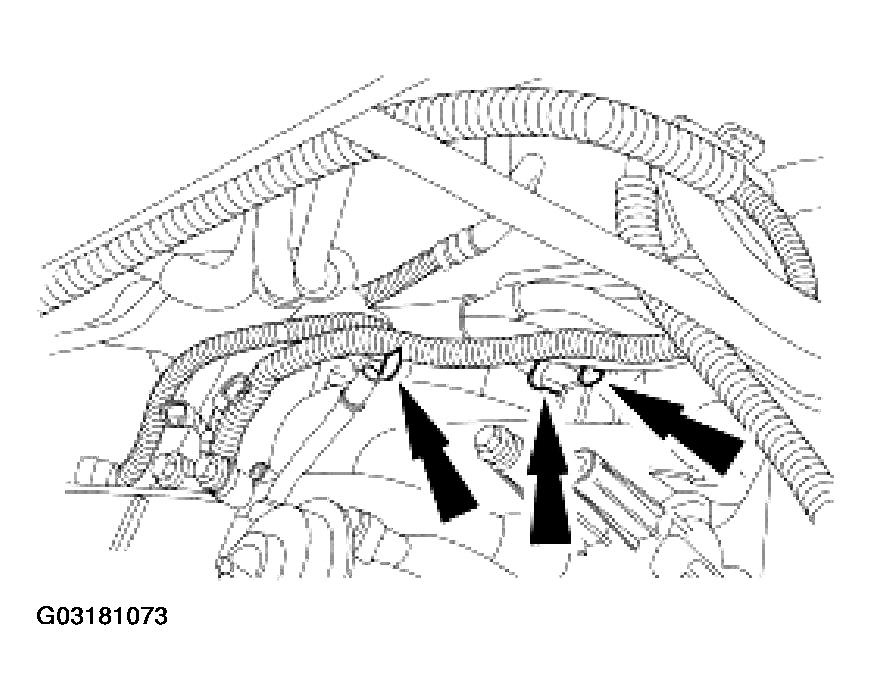

    Fig 3: Connecting Wire Harness Locators And KS Electrical Connector
    G03181073Courtesy of FORD MOTOR CO.
  4. Connect the LH fuel injector and coil pack electrical connectors and the fuel charging wiring harness retainers.

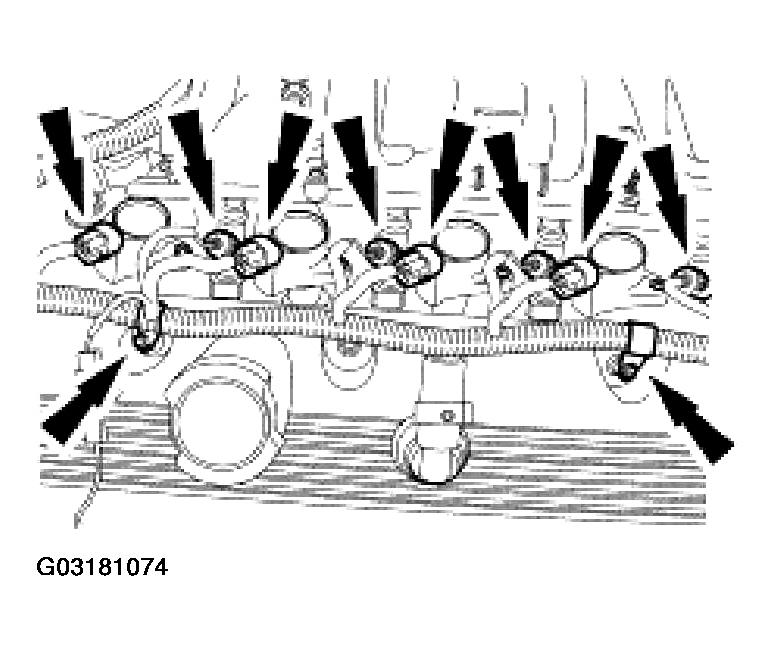

    Fig 4: Connecting LH Fuel Injector, Coil Pack Electrical Connectors And Wiring Harness Retainers
    G03181074Courtesy of FORD MOTOR CO.
  5. Connect the RH fuel injector, coil pack electrical connectors, and the wiring harness retainers.

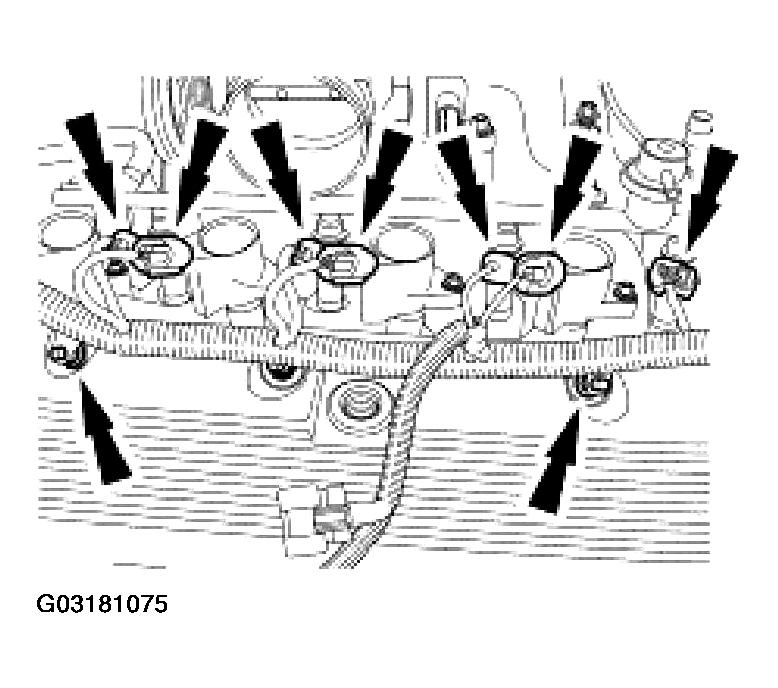

    Fig 5: Connecting RH Fuel Injector, Coil Pack Electrical Connectors And Wiring Harness Retainers
    G03181075Courtesy of FORD MOTOR CO.
  6. Connect the ground wire.

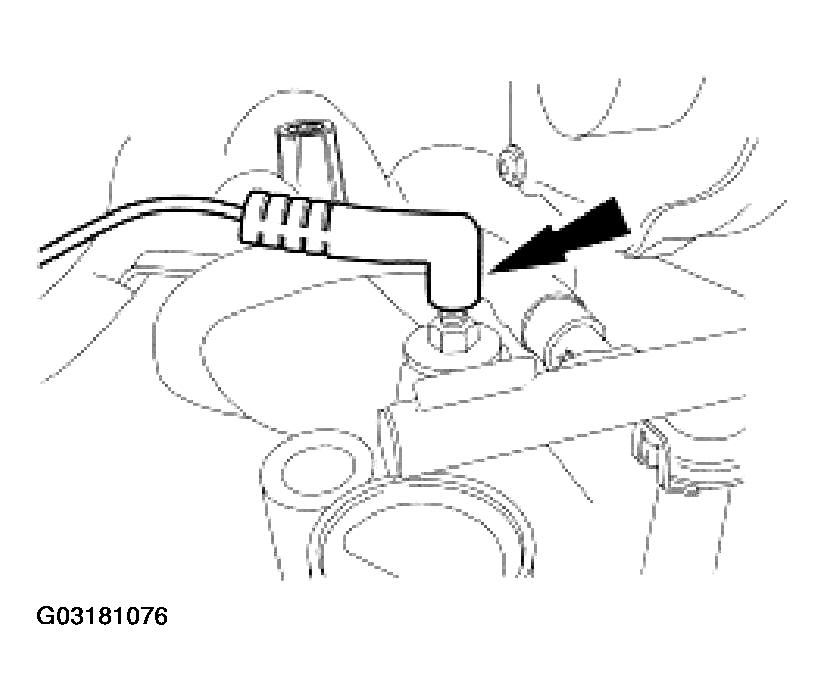

    Fig 6: Connecting Ground Wire
    G03181076Courtesy of FORD MOTOR CO.
