Item 21: Coolant Outlet Hose Installation Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the coolant outlet hose anchor to the fuel manifold stud.

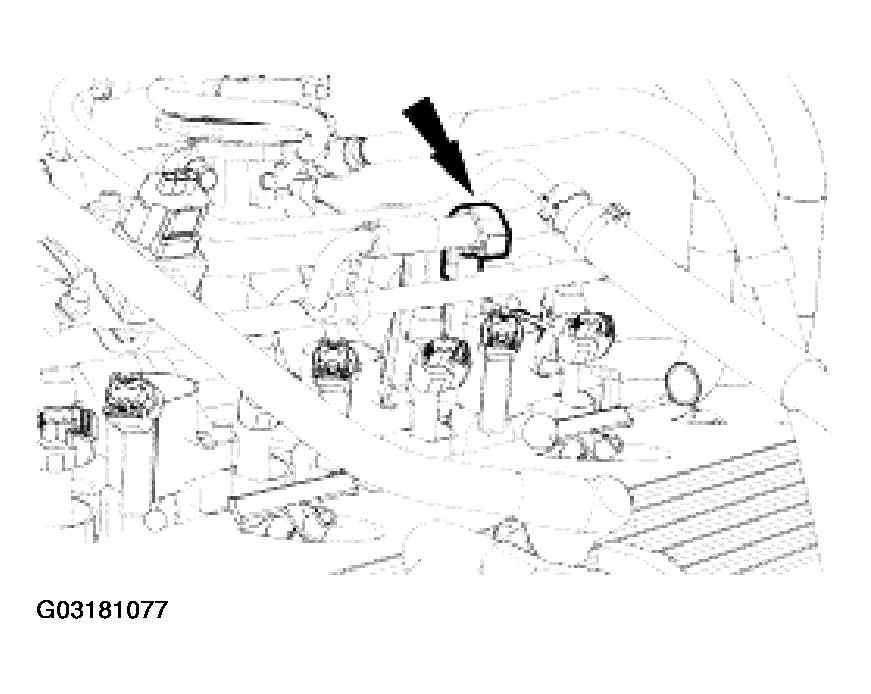

    Fig 1: Installing Coolant Outlet Hose
    G03181077Courtesy of FORD MOTOR CO.
