Item 5: Crankshaft Rear Oil Seal Installation Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using the special tools, install the crankshaft rear oil seal.
    • Lubricate the crankshaft rear oil seal with engine oil before installation.

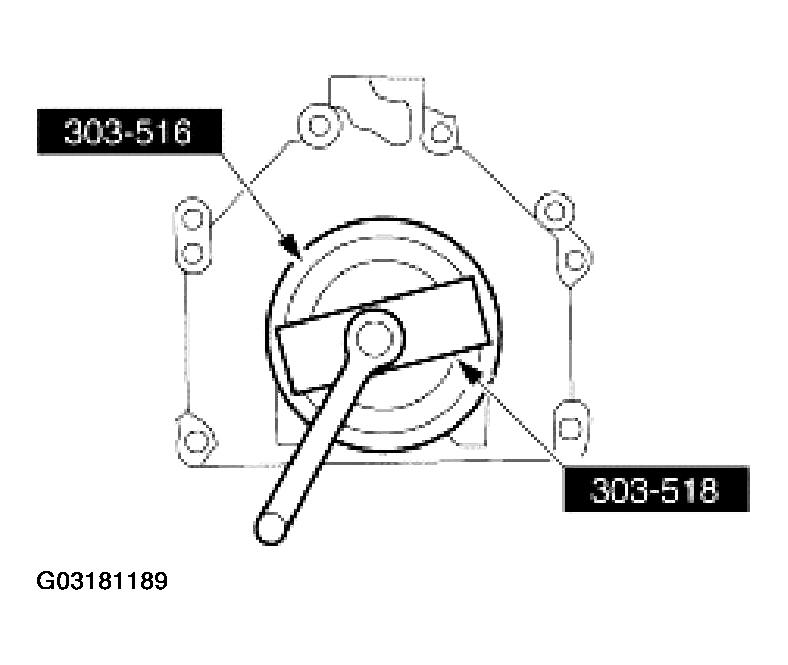

    Fig 1: Installing Crankshaft Rear Oil Seal (1 Of 2)
    G03181189Courtesy of FORD MOTOR CO.
