Item 4: Crankshaft Rear Oil Seal Slinger Removal Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using the special tools, remove the crankshaft rear oil seal slinger.

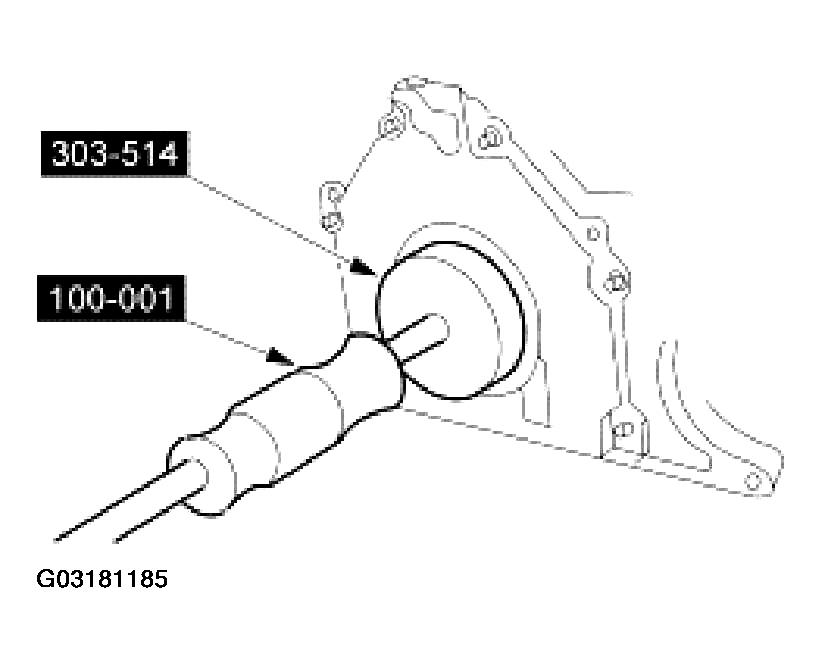

    Fig 1: Removing Crankshaft Rear Oil Seal Slinger
    G03181185Courtesy of FORD MOTOR CO.
