Item 1: Flexplate or Flywheel Bolts Installation Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the flexplate and install the bolts loosely.
    • Tighten the bolts in the sequence shown.

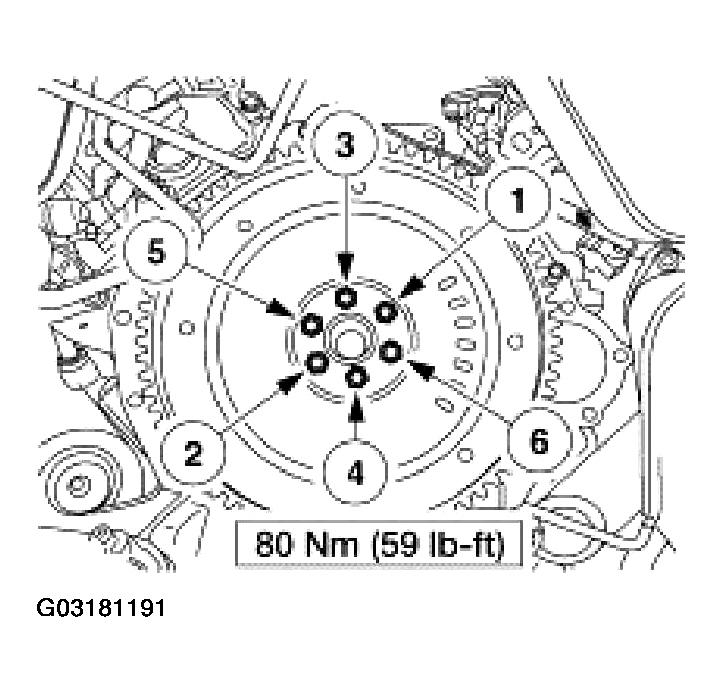

    Fig 1: Installing Flexplate Or Flywheel Bolts
    G03181191Courtesy of FORD MOTOR CO.
