Item 2: Exhaust Y-Pipe Flange Nuts Removal Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the two RH and two LH Y-pipe flange nuts.
  2. Loosen the RH transmission mount bolt.

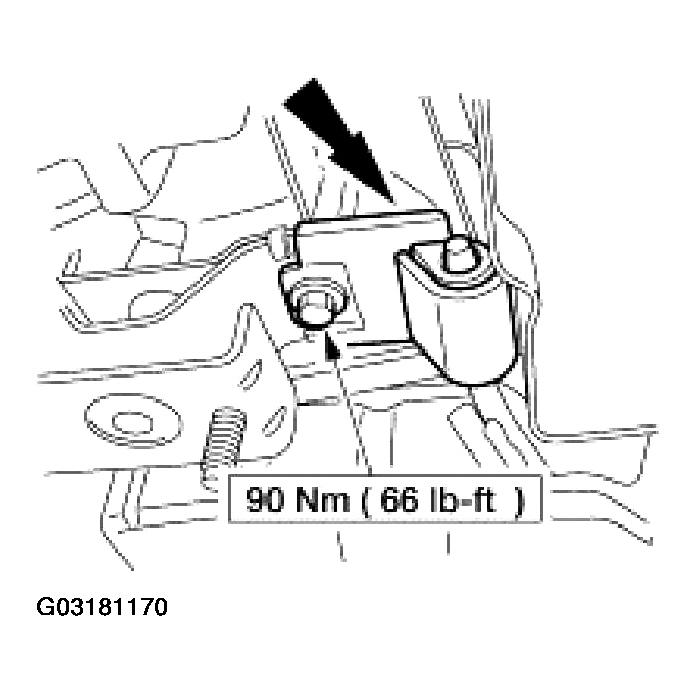

    Fig 1: Removing RH Transmission Mount Bolt
    G03181170Courtesy of FORD MOTOR CO.
