Removal and Installation

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in neutral, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Remove the parts in the order indicated in the following illustration and table.

    To remove individual parts, only carry out the listed steps:

    PARTS REMOVAL STEPS SPECIFICATION

    Part Steps
    Exhaust gas recirculation (EGR) tube-to-exhaust manifold 1-3
    EGR system module 1, 4-8

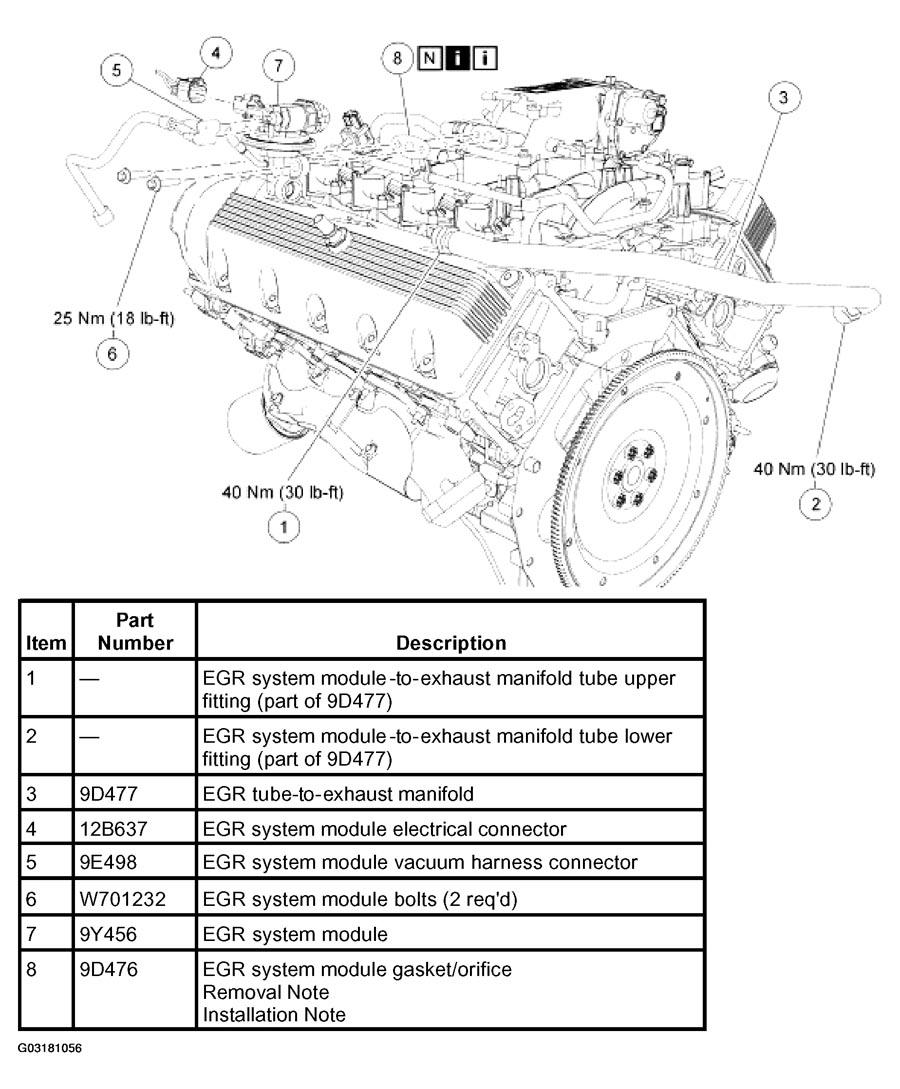

    Fig 1: Identifying Exhaust Gas Recirculation (EGR) Valve
    G03181056Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
