Item 8: EGR System Module Gasket/Orifice Installation Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install a new EGR system module gasket with the side with the raised circle facing the intake manifold.

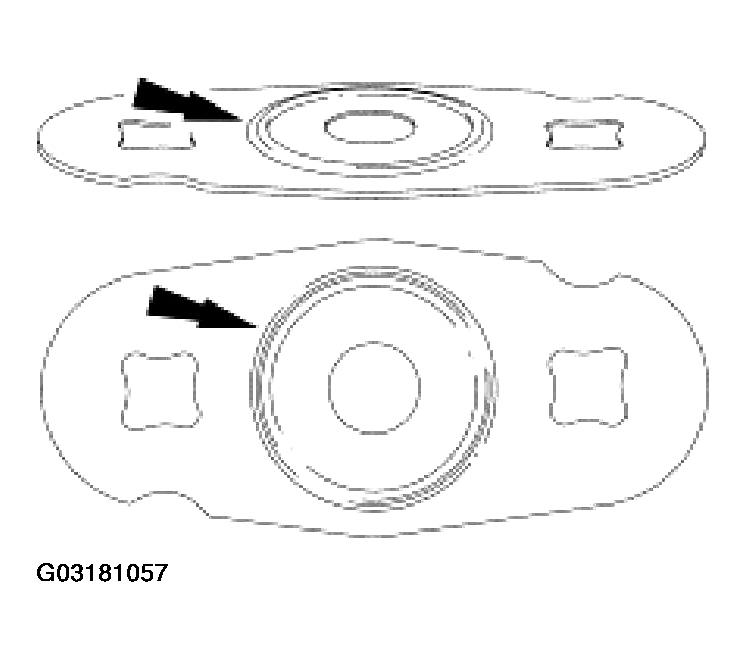

    Fig 1: Installing EGR System Module Gasket
    G03181057Courtesy of FORD MOTOR CO.
