Item 1: Power Steering Pump Pulley Removal Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
    CAUTION: While servicing the power steering system, make sure to plug all open hoses, line fittings, and fluid ports to prevent the entry of contaminants, or premature failure of power steering components can result.

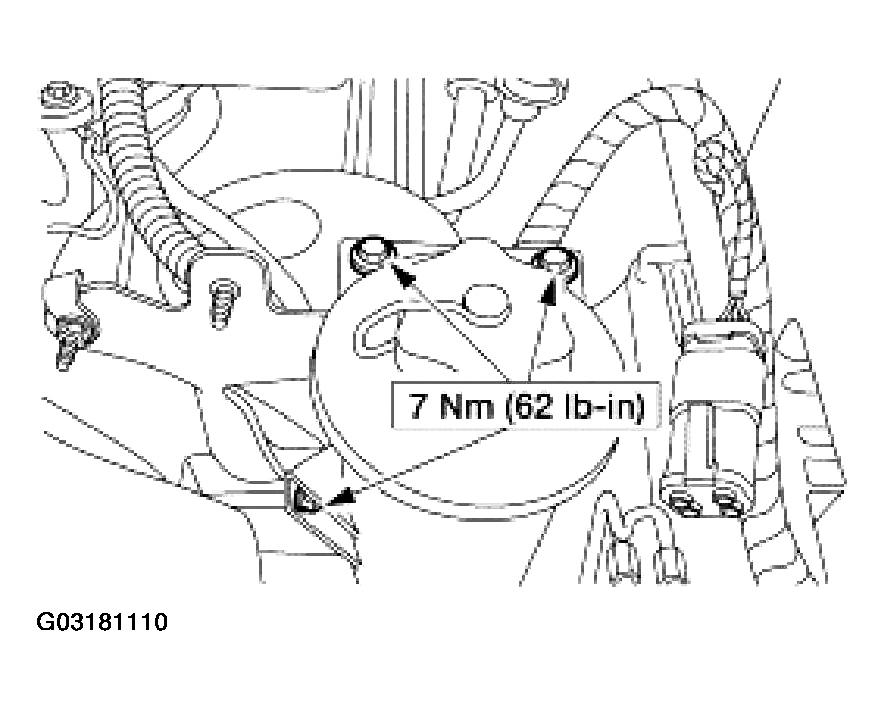

    Fig 1: Removing Power Steering Reservoir Bolts
    G03181110Courtesy of FORD MOTOR CO.
  1. Remove the power steering reservoir bolts.
  2. Loosen the clamps, disconnect the hoses and remove the reservoir.
    • Drain the fluid into a suitable container.

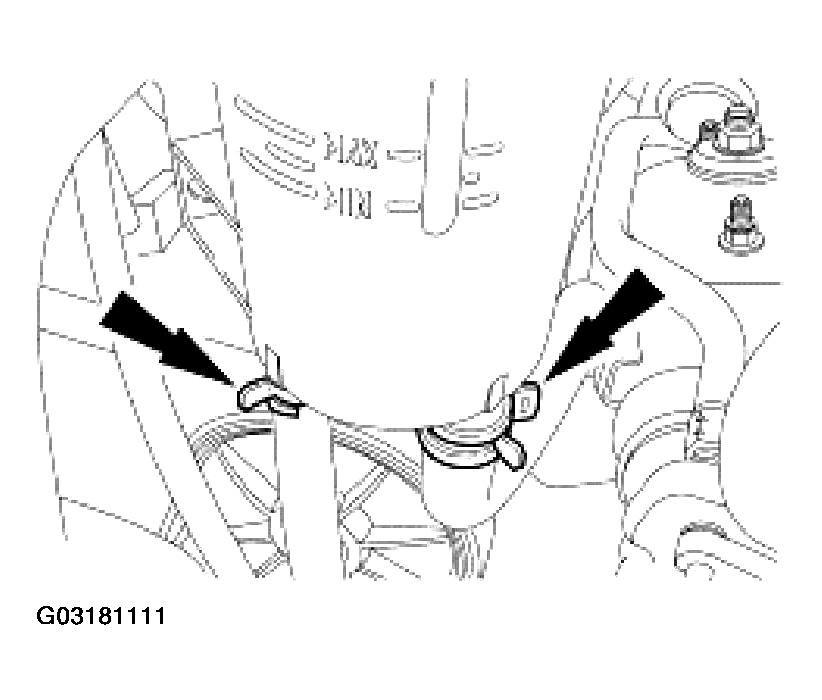

    Fig 2: Disconnecting Clamps And Hose
    G03181111Courtesy of FORD MOTOR CO.
  3. Using the special tool, remove the power steering pump pulley.

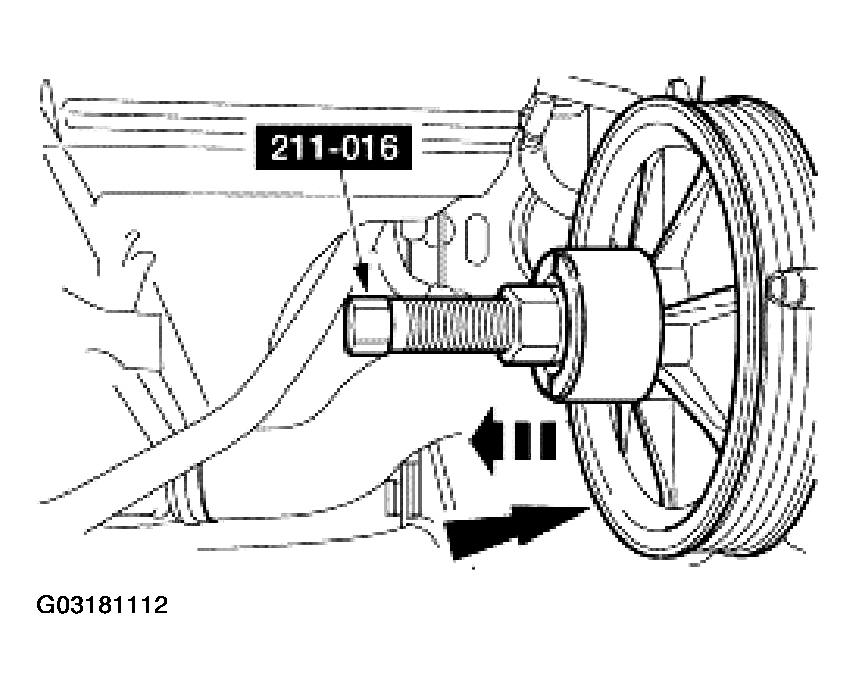

    Fig 3: Removing Power Steering Pump Pulley
    G03181112Courtesy of FORD MOTOR CO.
  4. Remove the nuts and position the wiring bracket out of the way.

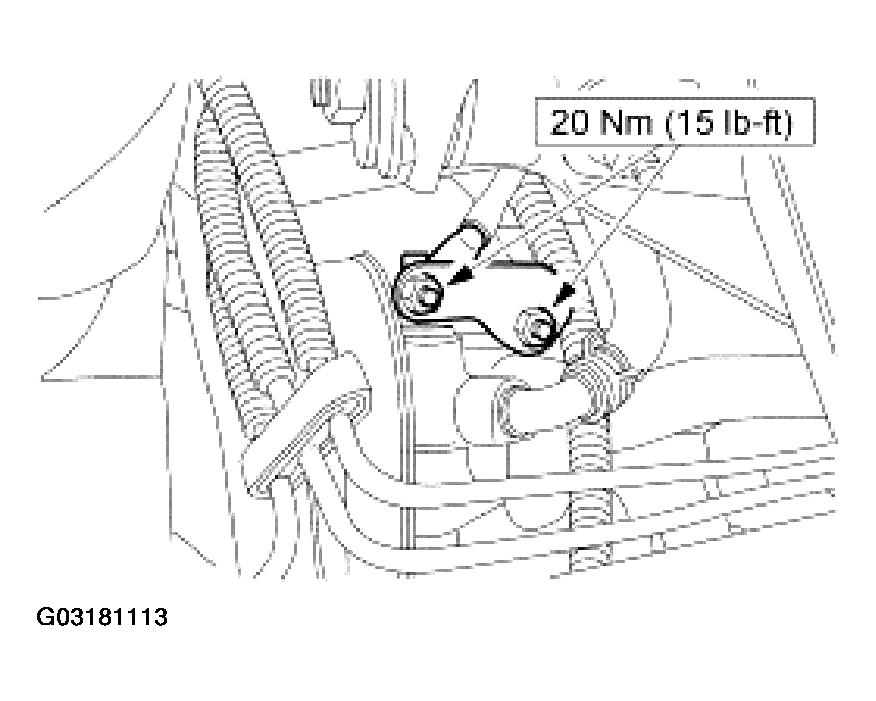

    Fig 4: Removing Wiring Bracket
    G03181113Courtesy of FORD MOTOR CO.
