Removal and Installation

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine cooling fan and shroud. For additional information, refer to ENGINE COOLING .
  2. Remove the parts in the order indicated in the following illustration and table.

    To remove individual parts, only carry out the listed steps:

    PARTS REMOVAL STEPS SPECIFICATION

    Part Steps
    Crankshaft pulley 1-3
    Crankshaft front seal 1-4

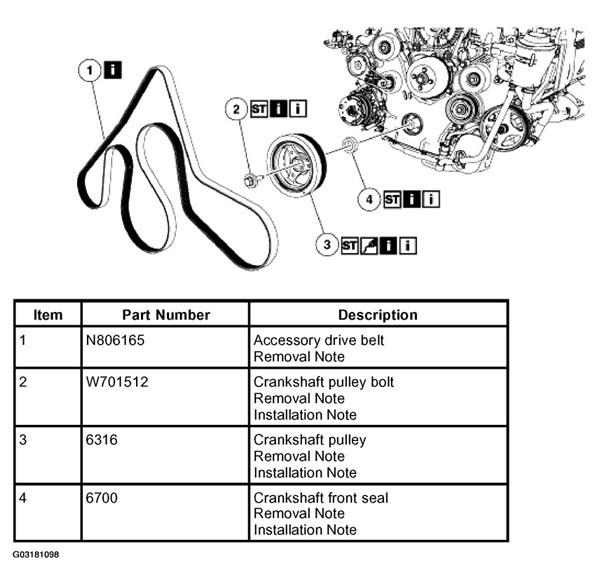

    Fig 1: Exploded View Of Crankshaft Pulley And Drive Belt
    G03181098Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
