Item 4: Crankshaft Front Seal Removal Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the front cover seal with the special tools.

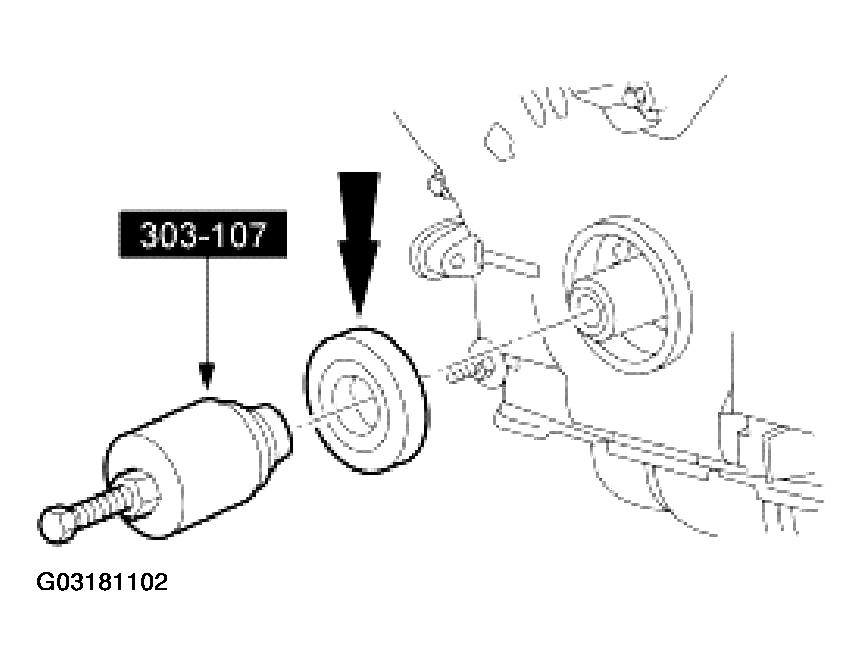

    Fig 1: Removing Crankshaft Front Seal
    G03181102Courtesy of FORD MOTOR CO.
