Items 3-1: Valve Spring Retainer Keys Installation Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the special tool between the valve spring coils to protect the valve stem seal from damage.

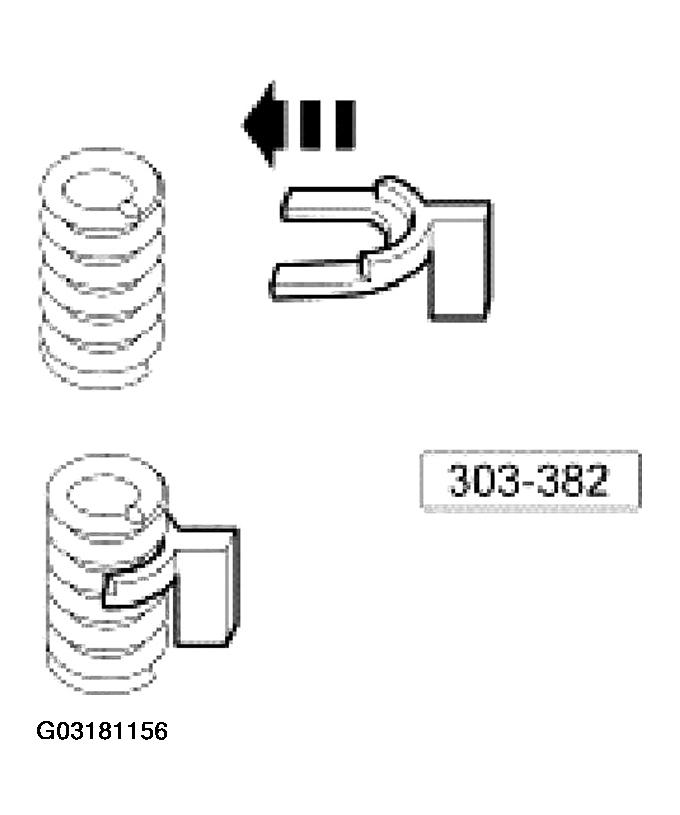

    Fig 1: Installing Special Tools Between Valve Spring Coils
    G03181156Courtesy of FORD MOTOR CO.
    2. NOTE: The three rear-most followers on the RH side must use special tool 303-567 in the same manner as is shown in the illustration.

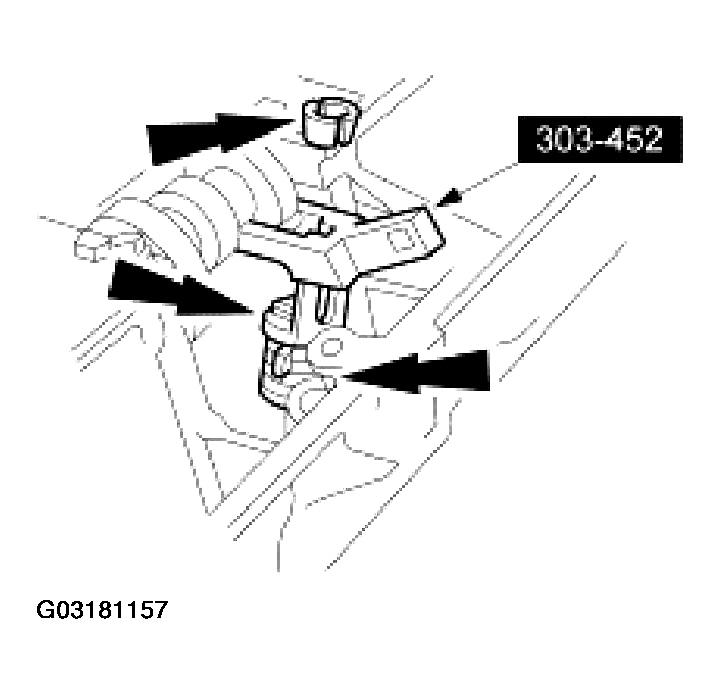

    Fig 2: Installing Valve Spring
    G03181157Courtesy of FORD MOTOR CO.
  2. Using the special tool, install the valve spring, the valve spring retainer and the valve spring retainer keys.
  3. Remove the special tool from the valve spring coils.

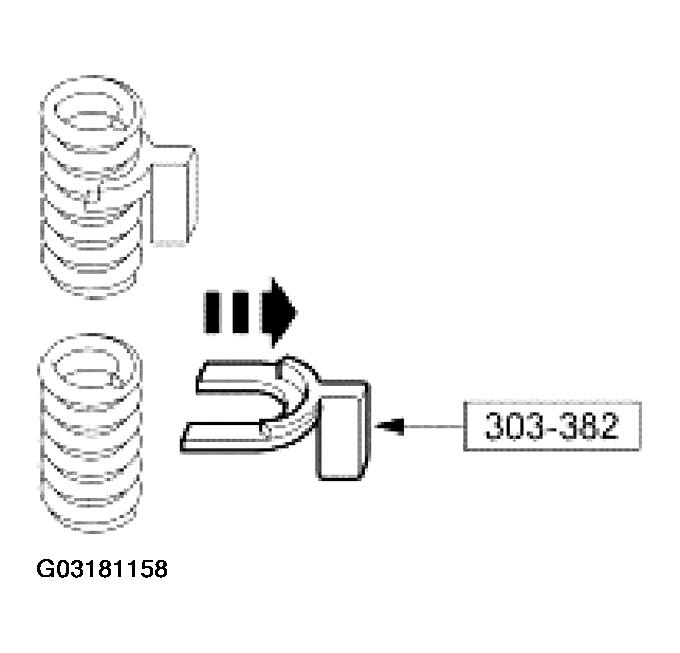

    Fig 3: Removing Special Tool From Valve Spring Coils
    G03181158Courtesy of FORD MOTOR CO.
