Items 11-9: Camshaft and Camshaft Bearing Caps Installation Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

Lubricate the camshaft journals with clean engine oil.

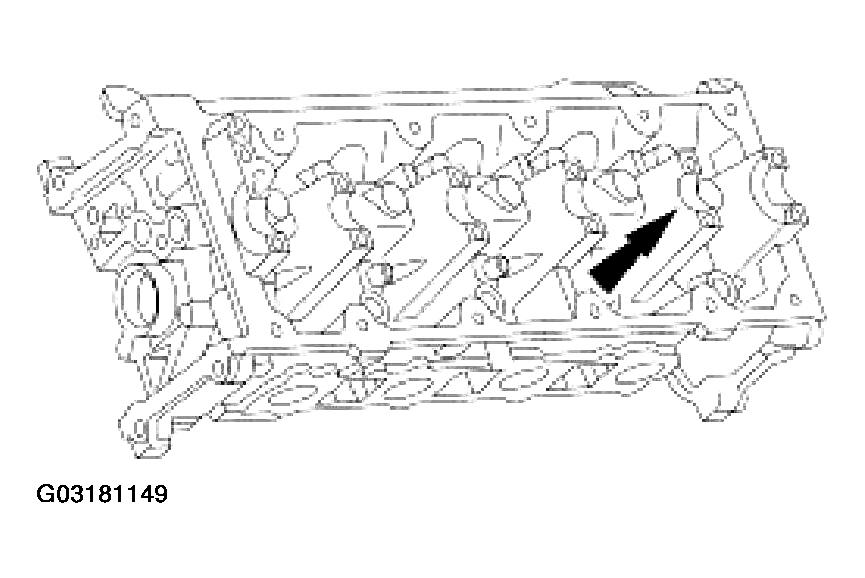

Fig 1: Lubricating The Camshaft Journals With Clean Engine Oil
Courtesy of FORD MOTOR CO.
Install the camshaft onto the cylinder head.

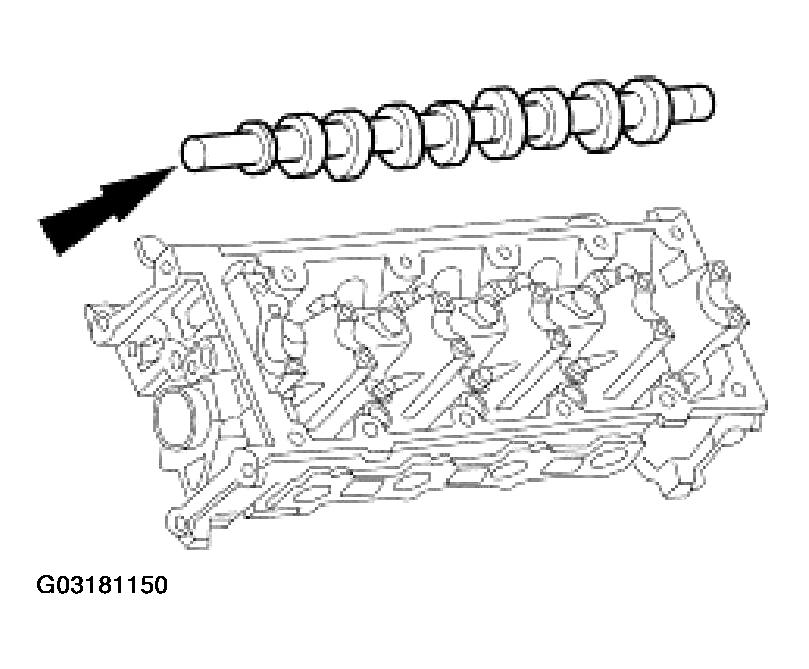

Fig 2: Installing Camshaft Onto Cylinder Head
Courtesy of FORD MOTOR CO.
Lubricate the camshaft bearing caps with clean engine oil.

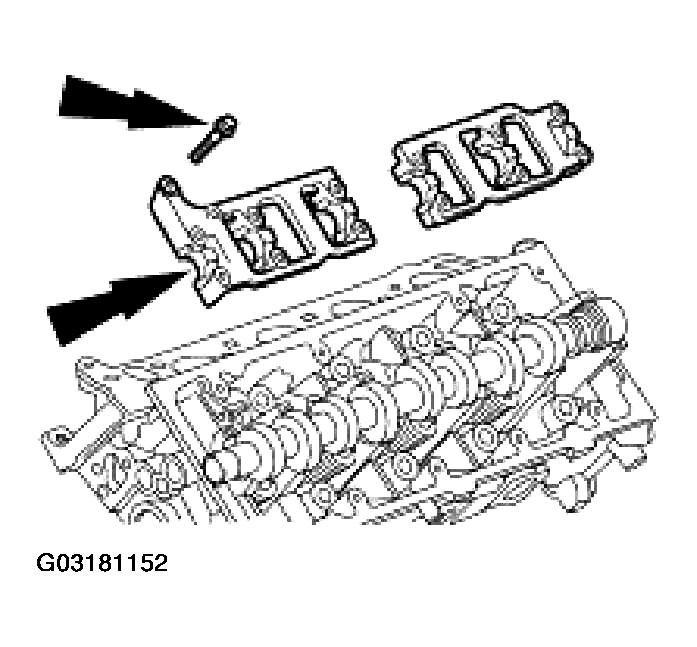

Fig 3: Locating Camshaft Bearing Caps
Courtesy of FORD MOTOR CO.
Install the camshaft bearing caps and loosely install the bolts.

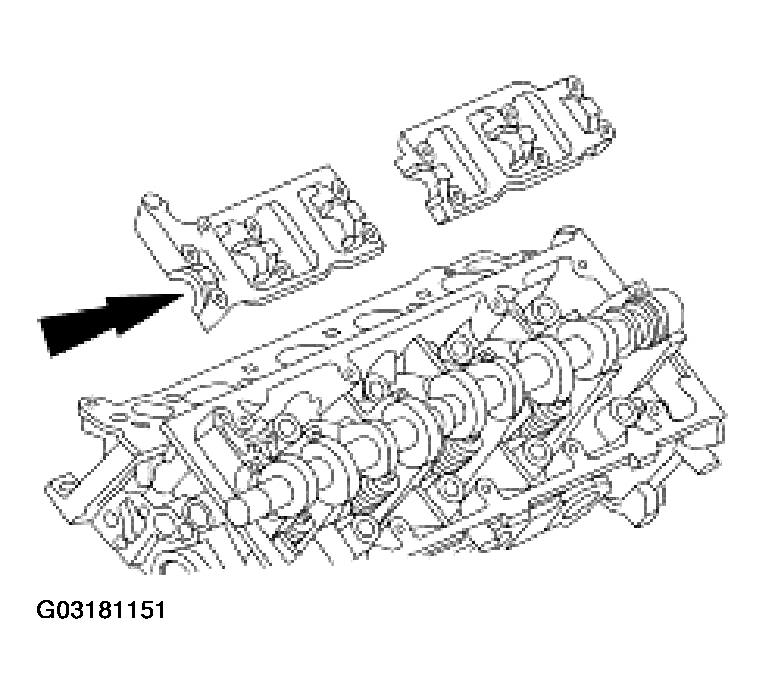

Fig 4: Installing Camshaft Bearing Caps
Courtesy of FORD MOTOR CO.
Tighten the bolts in the sequence shown.

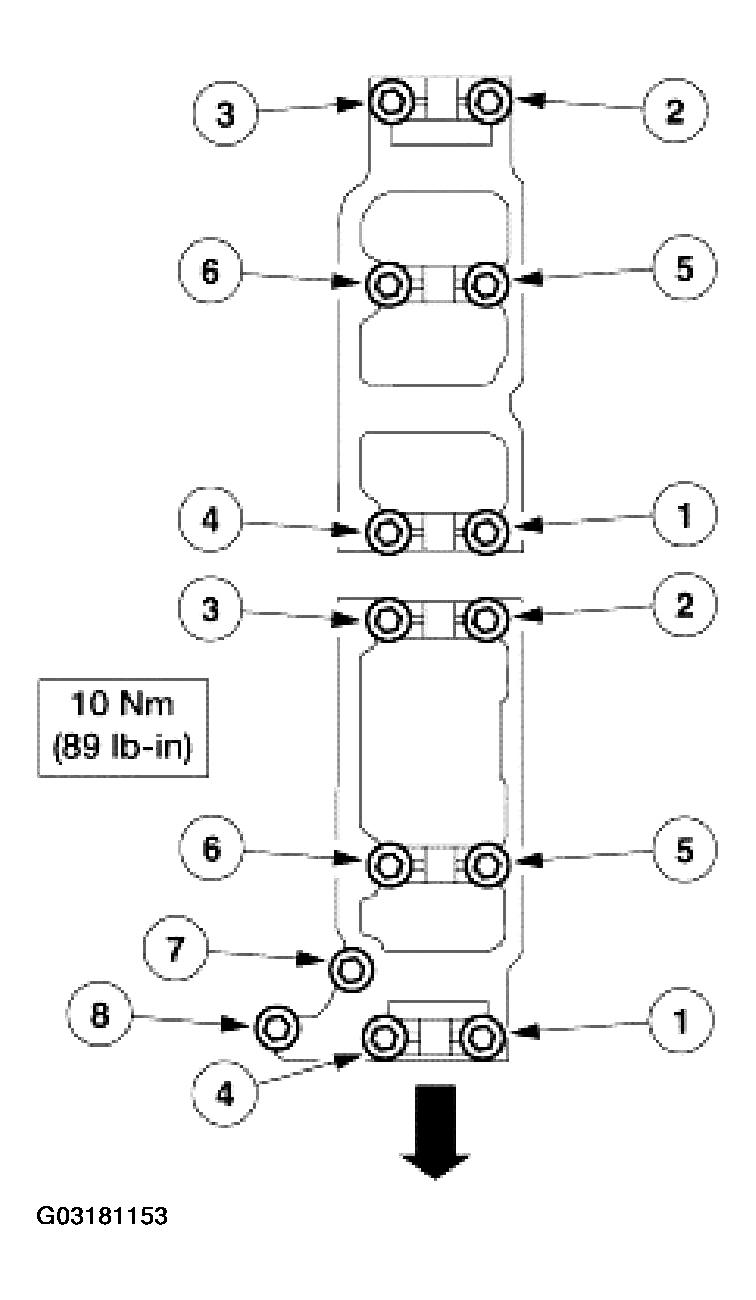

Fig 5: Tightening Bolts Sequence
Courtesy of FORD MOTOR CO.
