Item 1: Camshaft Roller Followers Removal Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the electrical connectors, remove the bolts, and the LH and RH ignition coils.
    • Tilt the coils away from the fuel injection supply manifold to remove.

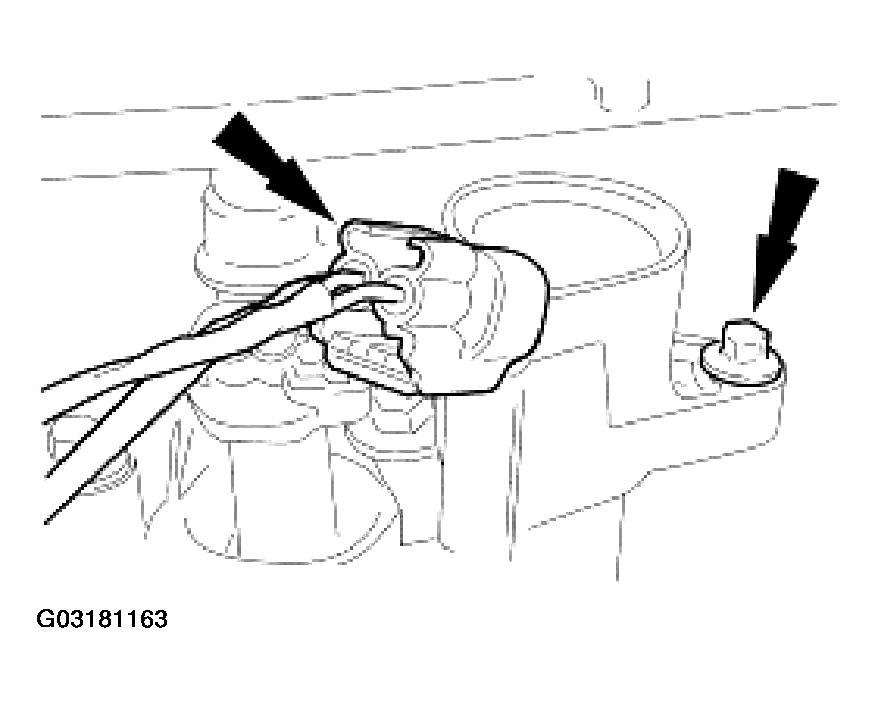

    Fig 1: Removing Ignition Coils Electrical Connector
    G03181163Courtesy of FORD MOTOR CO.
  2. Rotate the crankshaft until the cam lobe is directly away from the roller follower.

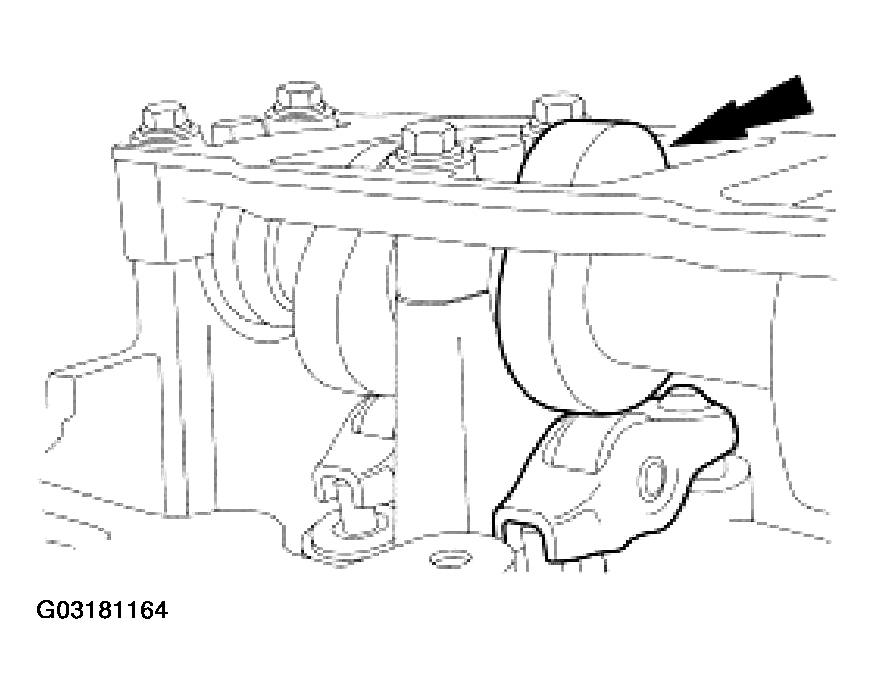

    Fig 2: Positioning Cam Lobe Directly Away From The Roller Follower
    G03181164Courtesy of FORD MOTOR CO.
  3. Install the special tool between the valve spring coils to prevent valve stem seal damage.

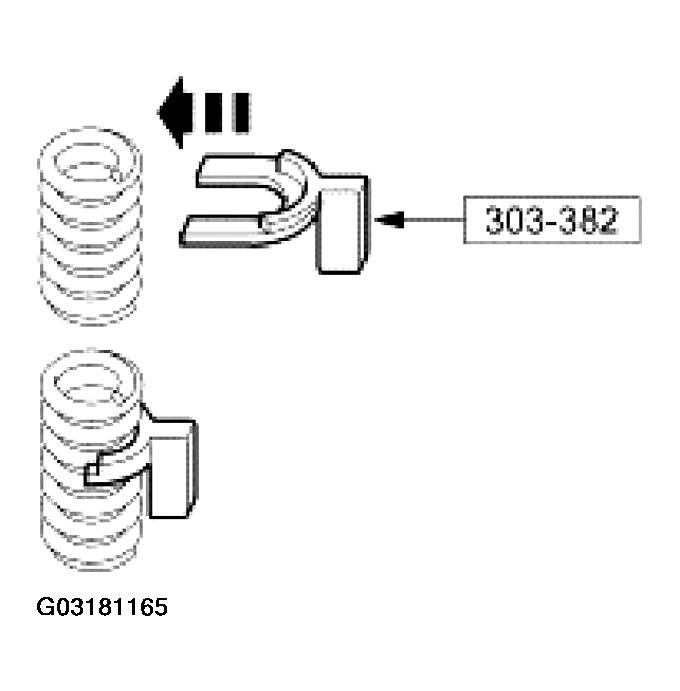

    Fig 3: Installing Special Tool Between Valve Spring Coils
    G03181165Courtesy of FORD MOTOR CO.
    4. NOTE: The three rear-most followers on the RH side must use special tool 303-581 in the same manner as is shown in the illustration.
    NOTE: The roller followers and hydraulic lash adjusters are positional. Mark the followers and lash adjusters for installation in their original locations.

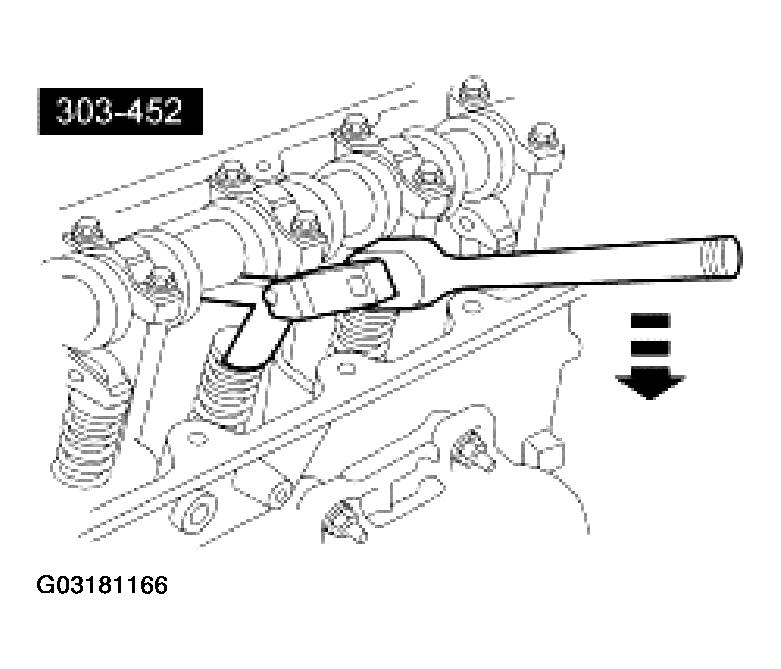

    Fig 4: Compressing Valve Springs
    G03181166Courtesy of FORD MOTOR CO.
  4. Using the special tool, compress the valve springs and remove the camshaft roller followers.
