Removal and Installation

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the air cleaner assembly. For additional information, refer to INTAKE AIR, FUEL CHARGING, STARTING AND ENGINE ELECTRONICS -4.6L (2V) .
  2. Remove the parts in the order indicated in the following illustration and table.

    To remove individual parts, only carry out the listed steps:

    PARTS REMOVAL STEPS SPECIFICATION

    Part Steps
    Accessory drive belt 1
    Accessory drive belt tensioner 1-3
    Accessory drive belt idler pulley (upper RH) 1, 8-9
    Accessory drive belt idler pulley (upper LH) 1, 6-7
    Accessory drive belt idler pulley (lower LH) 1, 4-5

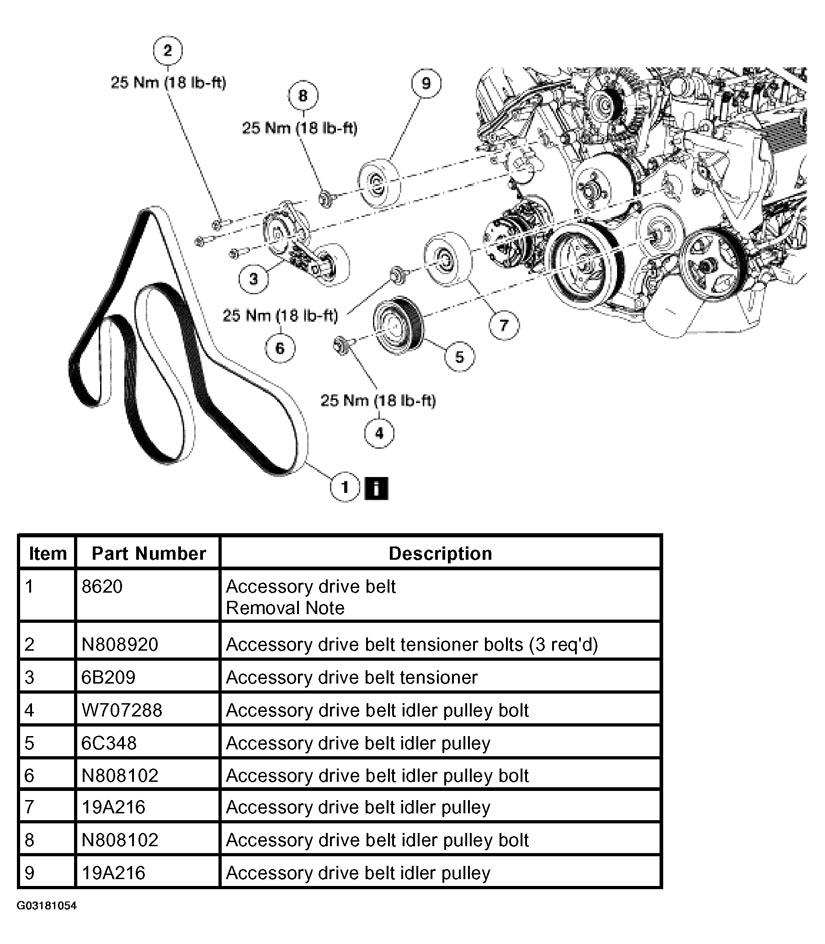

    Fig 1: Exploded View Of Accessory Drive Belt, Tensioner And Pulley
    G03181054Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
