Items 2-5: Valve Assembly Disassembly Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using the special tool, compress the valve spring.

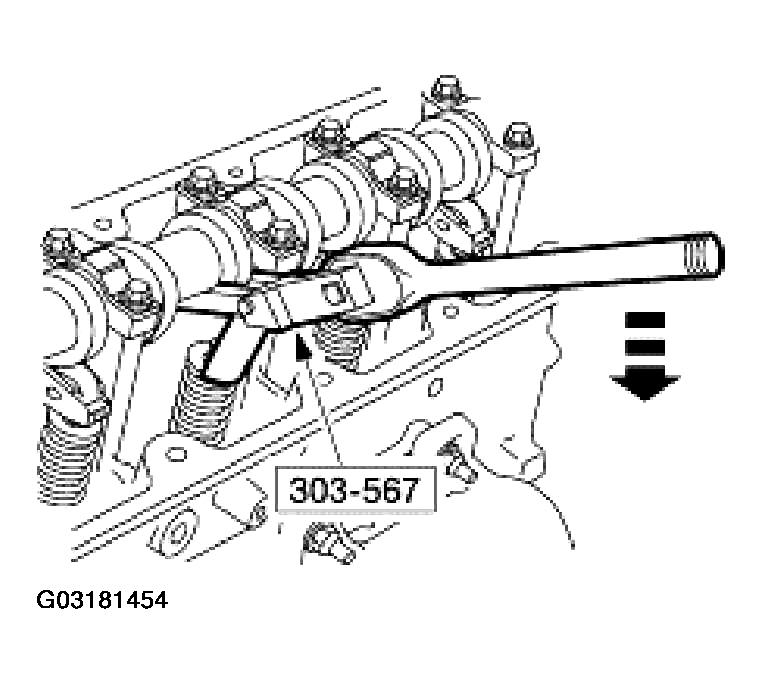

    Fig 1: Compressing Valve Spring
    G03181454Courtesy of FORD MOTOR CO.
    2. CAUTION: Keep the valve and valve spring retainer keys in order so they can be installed in the same position.
    NOTE: Valve stem seals should be visually inspected if new seals are not installed.

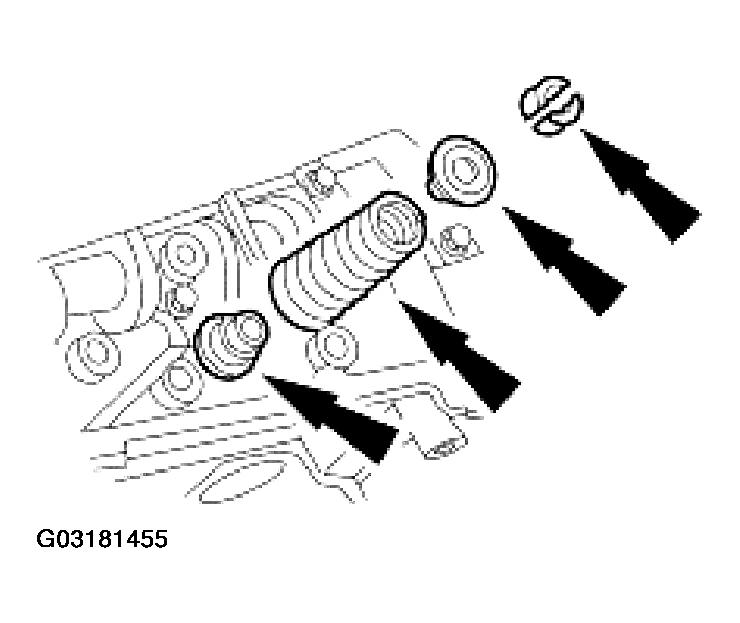

    Fig 2: Removing Valve Spring Retainer Keys, Valve Spring Retainer And Valve Stem Seal
    G03181455Courtesy of FORD MOTOR CO.
  2. Remove the valve spring retainer keys, the valve spring retainer, the valve spring and the valve stem seal.
  3. Repeat the above steps and remove all of the valve spring retainer keys, the valve spring retainer, the valve spring and the valve stem seal.
