Item 1: Hydraulic Lash Adjuster Assembly Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: Lubricate the hydraulic lash adjusters with clean engine oil.

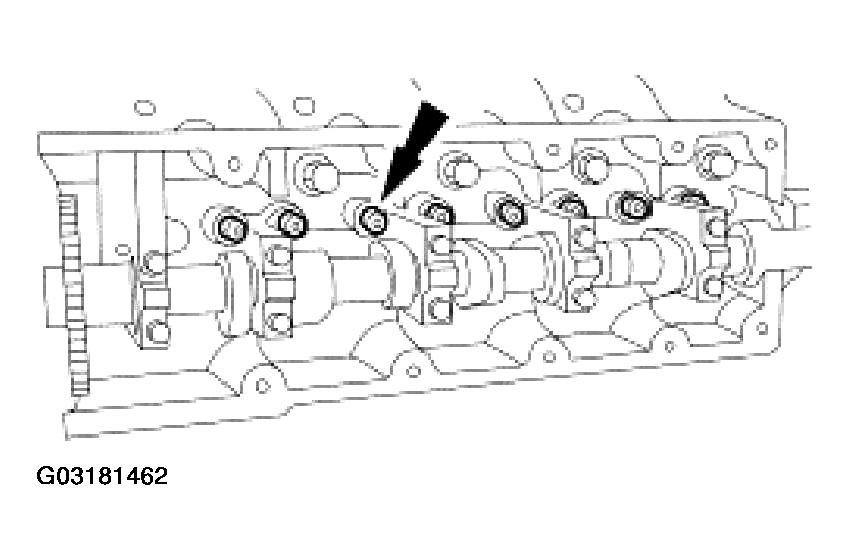

    Fig 1: Installing Hydraulic Lash Adjusters
    G03181462Courtesy of FORD MOTOR CO.
  1. Install the hydraulic lash adjusters in their original location.
