Disassembly and Assembly

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean surfaces. These tools cause scratches and gouges which make leak paths.

Clean and inspect the sealing surfaces. For additional information, refer to ENGINE SYSTEM-GENERAL INFORMATION .

CAUTION: Place the cylinder head on a cardboard or wood surface to prevent damage to the joint face.

NOTE: The hydraulic lash adjusters must be installed in their original locations. Record hydraulic lash adjuster locations.

NOTE: LH is shown, RH is similar.

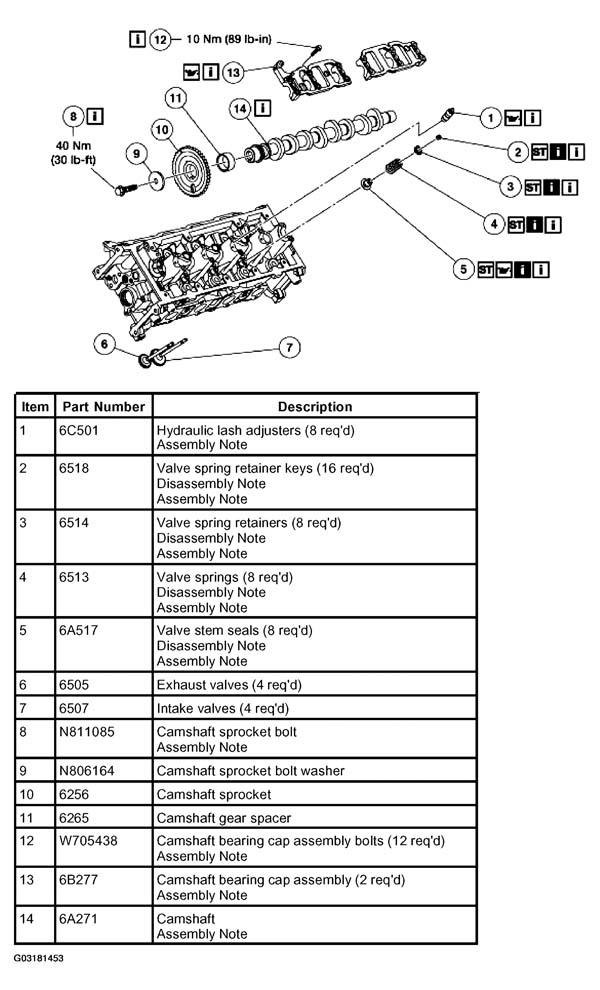

Fig 1: Exploded View Of Cylinder Head Assembly

Courtesy of FORD MOTOR CO.

Remove the parts in the order indicated in the following illustration and table.
To assemble, reverse the disassembly procedure.
