Section 552 (Engine - 4.6L)
>>
Description And Operation
>>
Accessory Drive
>>
Component Locations 4.6L
Component Locations 4.6L
WARNING:
This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

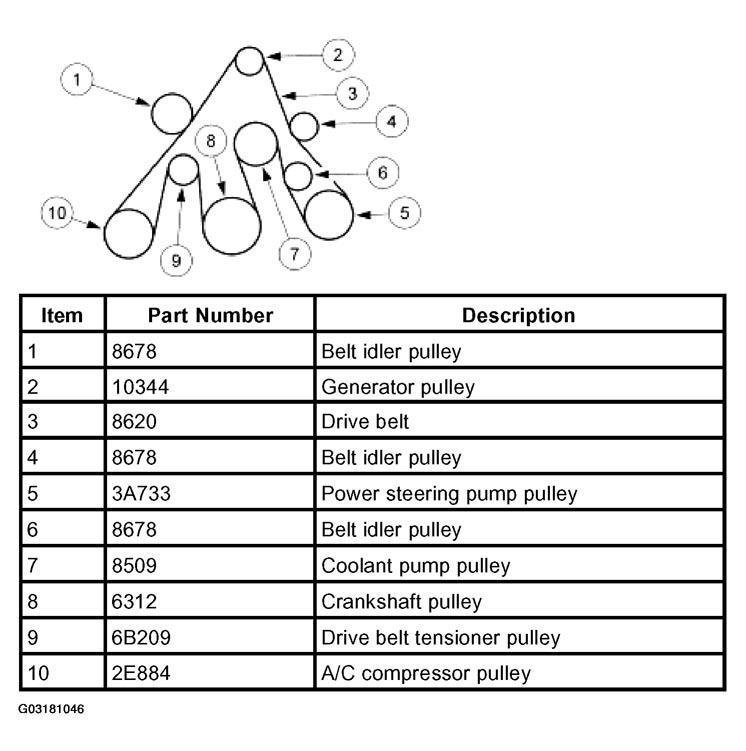

Fig 1: Identifying Accessory Drive Component Locations 4.6L
Courtesy of FORD MOTOR CO.
The accessory drive:
has a single serpentine drive belt (six ribs).
has an automatic tensioner.
is not adjustable.
