Removal and Installation

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the intake manifold. For additional information, refer to INTAKE MANIFOLD .
  2. Remove the parts in the order indicated in the following illustrations and tables.

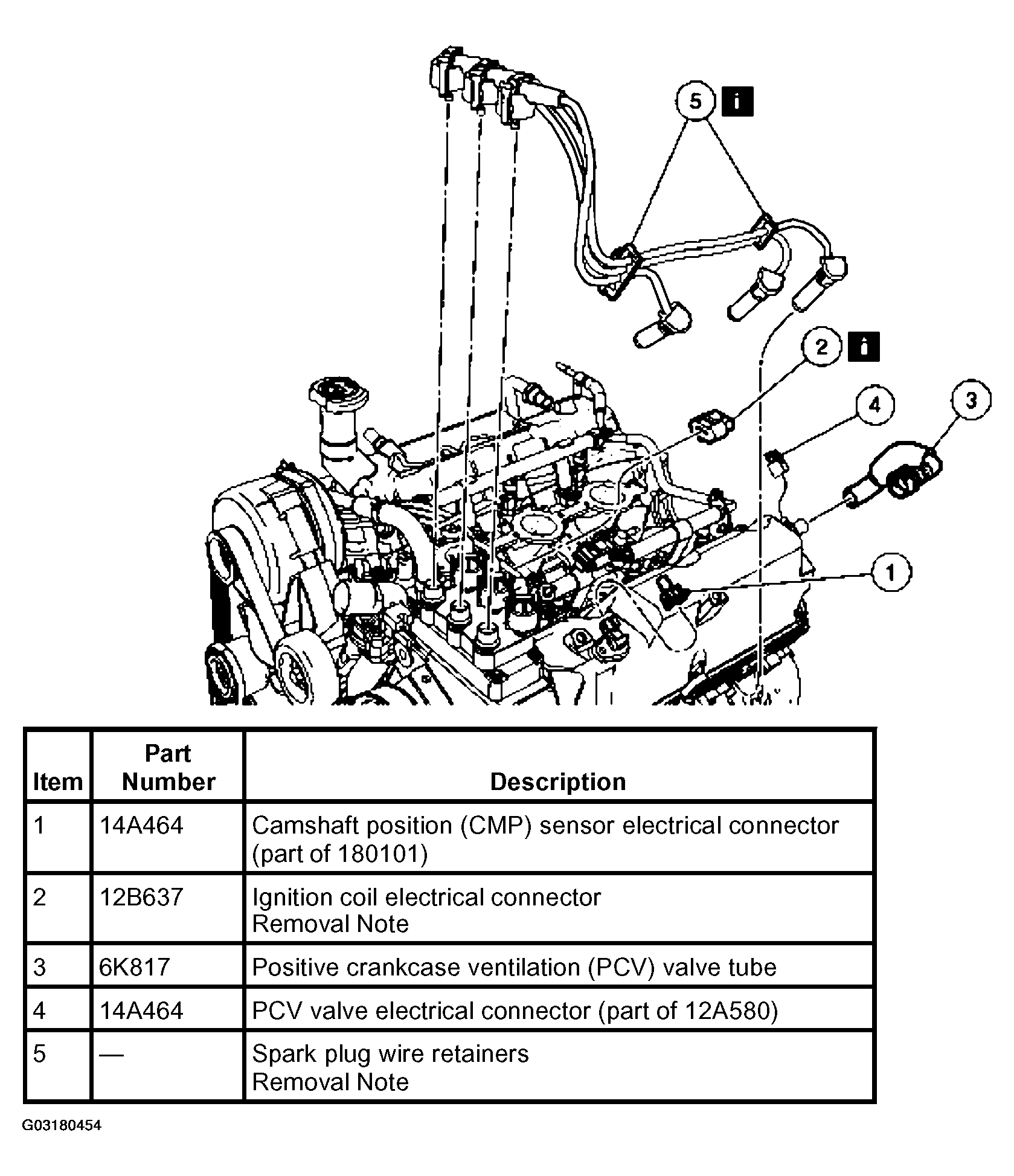

    Fig 1: Removing Valve Cover LH (1 Of 2)
    G03180454Courtesy of FORD MOTOR CO.

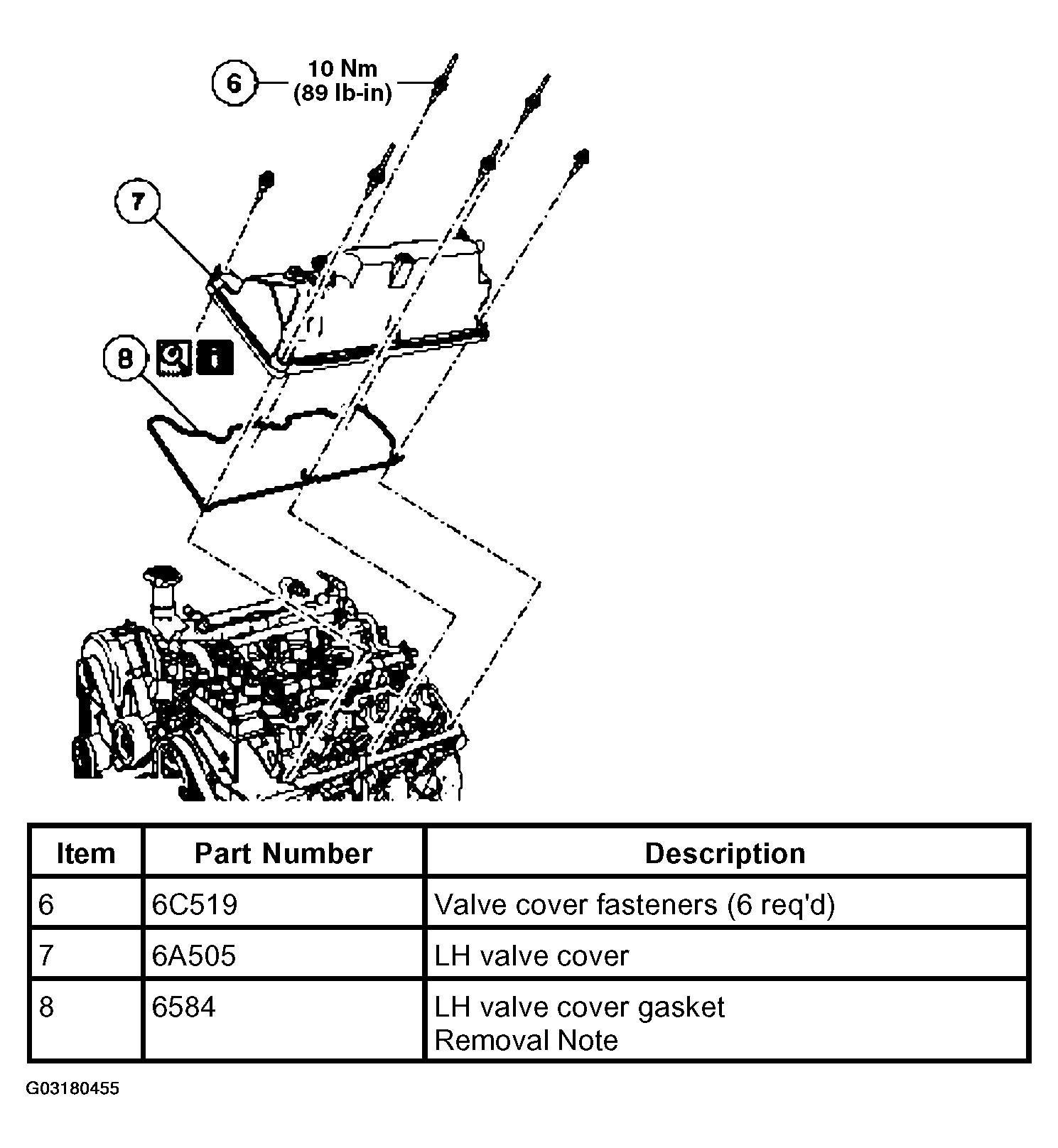

    Fig 2: Removing Valve Cover LH (2 Of 2)
    G03180455Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
