Item 2: Ignition Coil Electrical Connector Removal Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Detach the pin-type retainer on the wiring harness near the ignition coil electrical connector.
  2. Disconnect the fuel injector electrical connectors and the harness standoff clips.

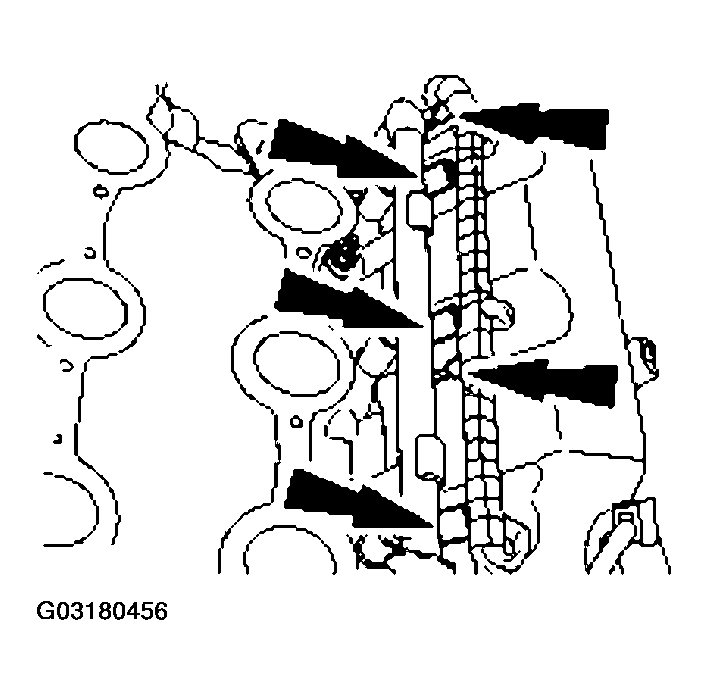

    Fig 1: Disconnecting Fuel Injector Electrical Connectors And Harness Standoff Clips
    G03180456Courtesy of FORD MOTOR CO.
