Item 15: Lower Block Cradle (4x4 vehicles) Removal Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the upper air deflector.

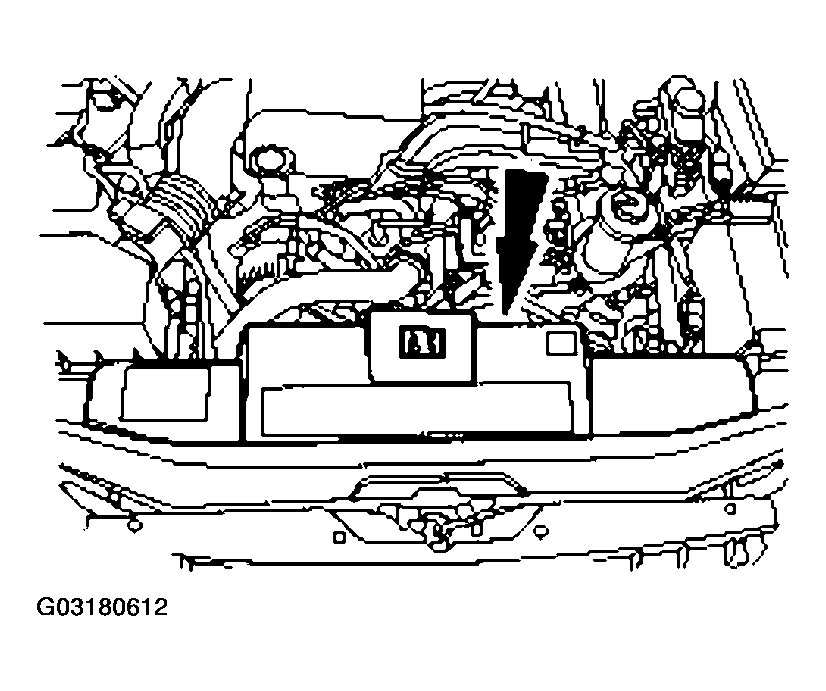

    Fig 1: Removing Upper Air Deflector
    G03180612Courtesy of FORD MOTOR CO.
  2. Remove the weatherstrip.

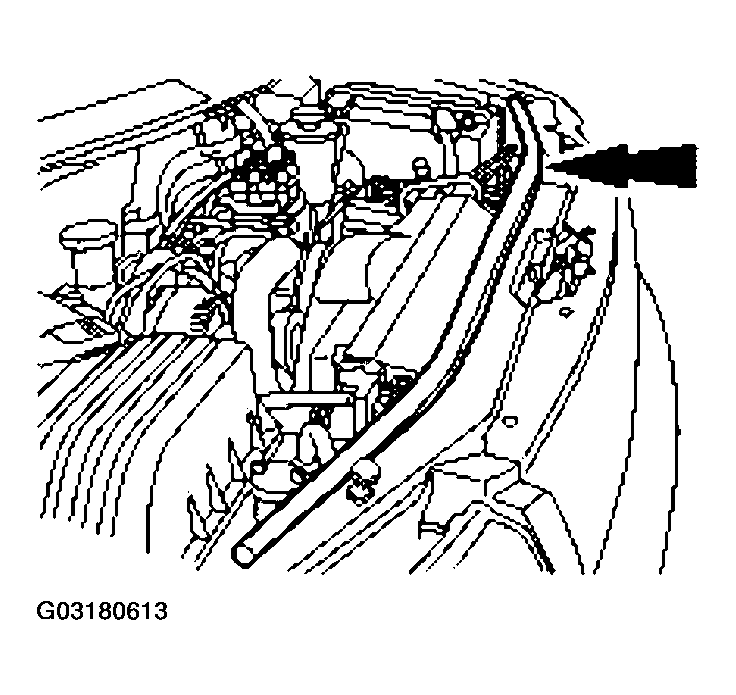

    Fig 2: Removing Weatherstrip
    G03180613Courtesy of FORD MOTOR CO.
    3. NOTE: Not all vehicles will have screws installed in the radiator fan shroud.

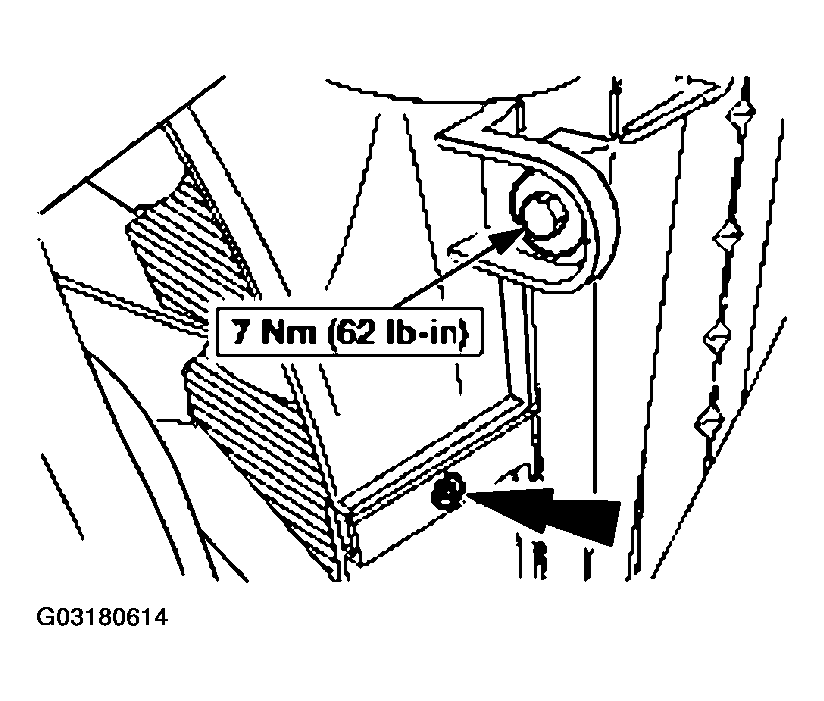

    Fig 3: Removing Bolts And Fan Shroud
    G03180614Courtesy of FORD MOTOR CO.
  3. Remove and discard the screws. Remove the bolts and the fan shroud.
  4. Remove the bolt.

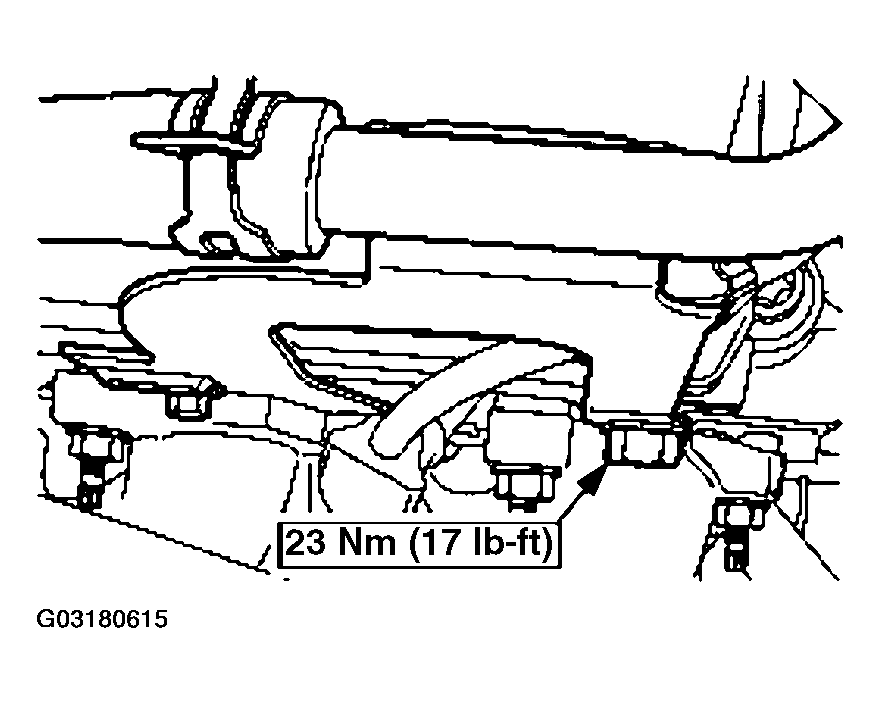

    Fig 4: Removing Bolt
    G03180615Courtesy of FORD MOTOR CO.
  5. Install the RH lifting eye using the previously removed bolt.

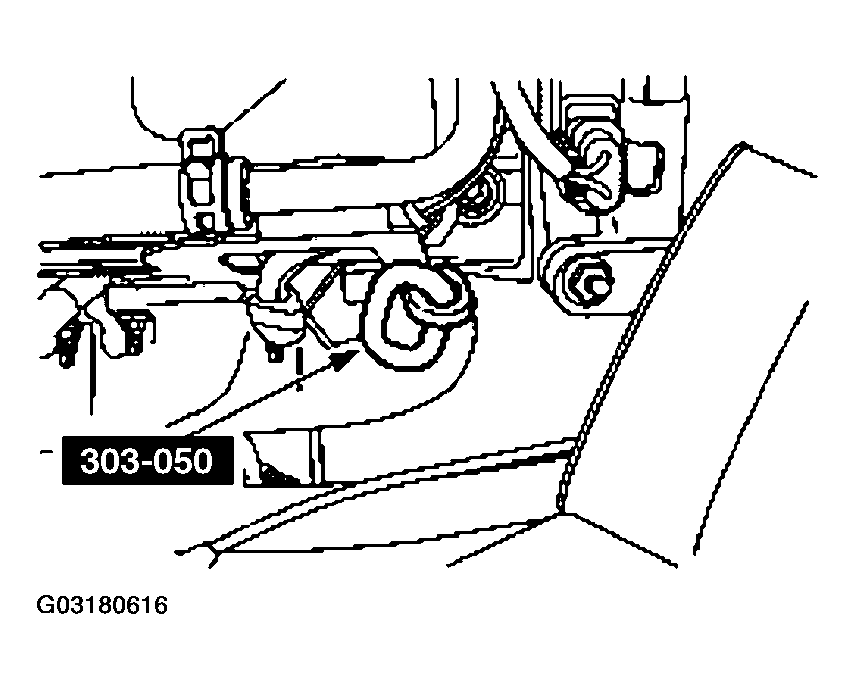

    Fig 5: Installing RH Lifting Eye
    G03180616Courtesy of FORD MOTOR CO.
    6. NOTE: This is not a typical setup. Only the right side of the motor will be raised.

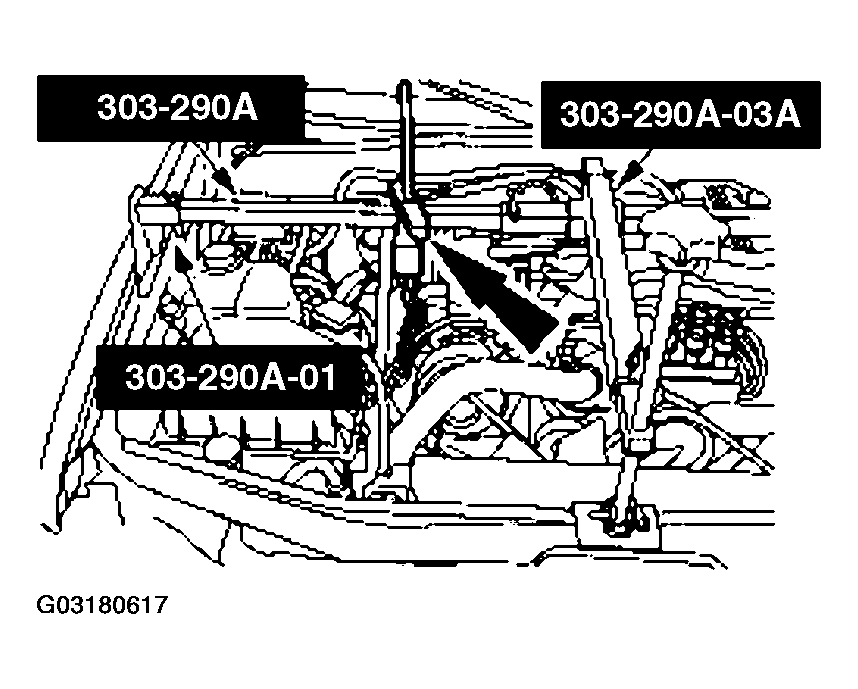

    Fig 6: Installing Special Tools
    G03180617Courtesy of FORD MOTOR CO.
  6. Install the special tools.
  7. Remove the four bolts and the crossmember.

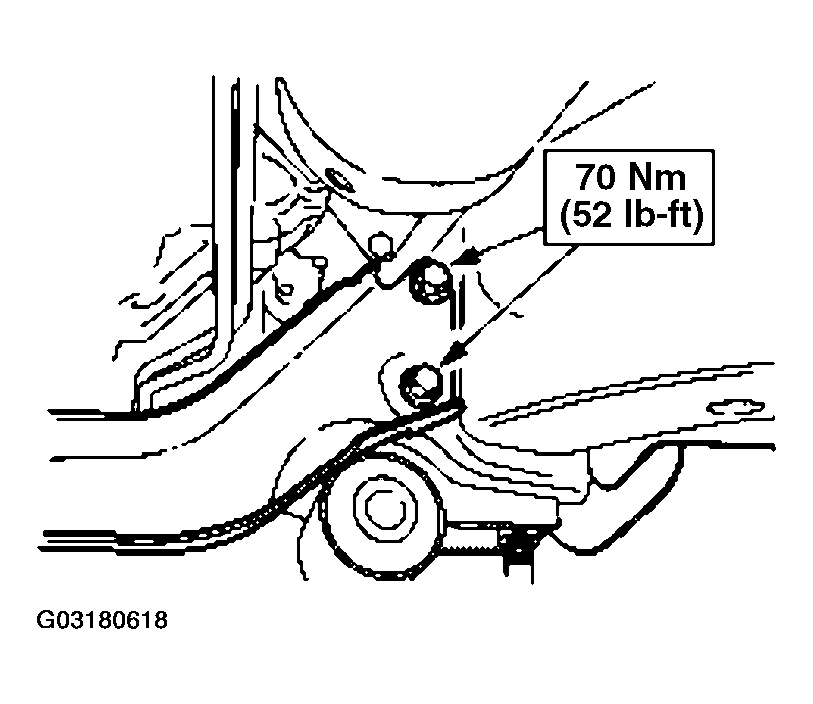

    Fig 7: Removing Four Bolts And Crossmember
    G03180618Courtesy of FORD MOTOR CO.
  8. Remove the RH motor mount nut.

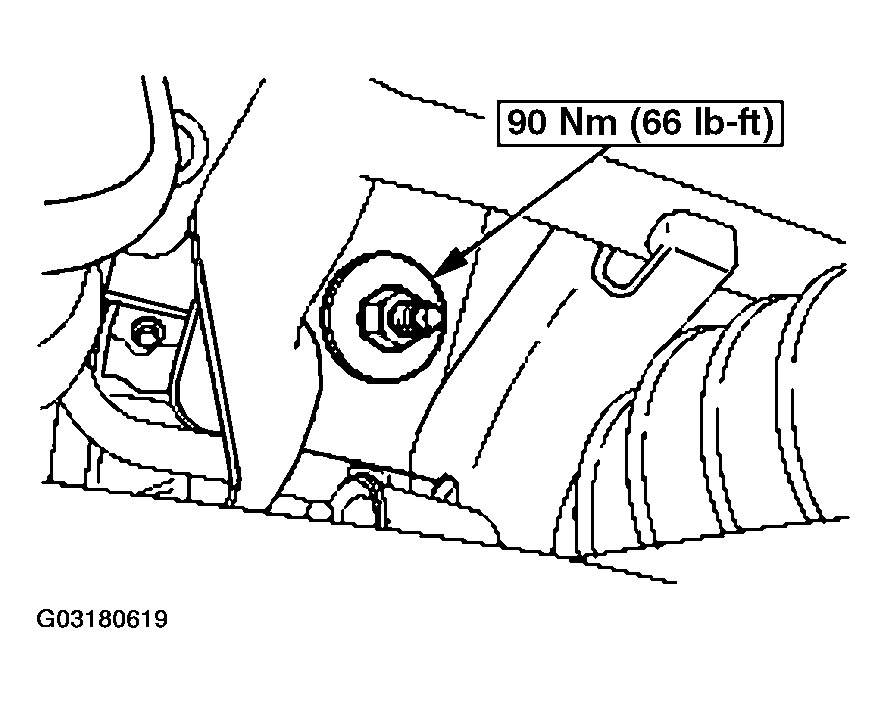

    Fig 8: Removing RH Motor Mount Nut
    G03180619Courtesy of FORD MOTOR CO.
  9. Remove the LH side through bolt and nut.

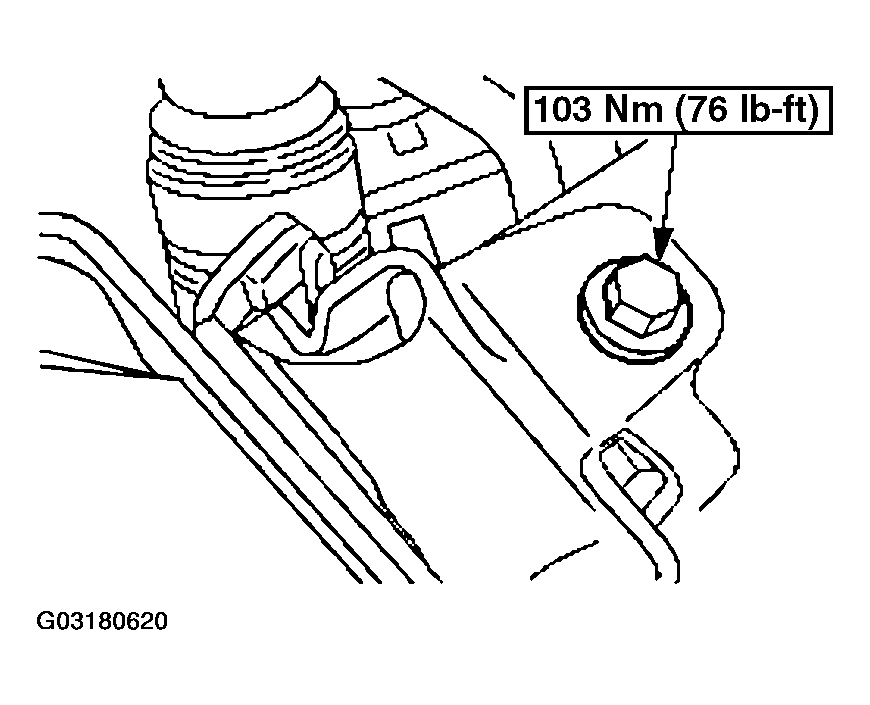

    Fig 9: Removing LH Side Through Bolt And Nut
    G03180620Courtesy of FORD MOTOR CO.
  10. Raise the engine.
    11. CAUTION: Failure to back off the set screws can result in damage to the lower block cradle.
    Fig 10: Backing Set Screws Off Until They Are Below The Lower Block Cradle Boss
    G03180621Courtesy of FORD MOTOR CO.
  11. Back the set screws off until they are below the lower block cradle boss.
    12. NOTE: Use a floor jack to support the front axle assembly.

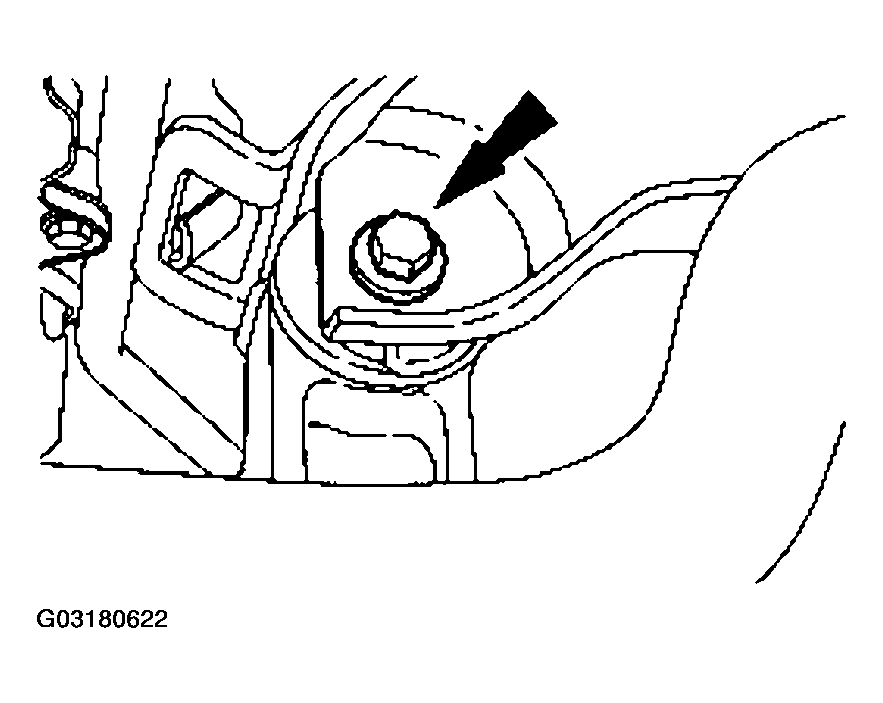

    Fig 11: Removing Bolt From Right Side Of Axle Housing
    G03180622Courtesy of FORD MOTOR CO.
  12. Remove the bolt from the right side of the axle housing. Discard the nut and bolt.
  13. Remove the LH side lower axle housing bolt and nut. Discard the bolt and nut.

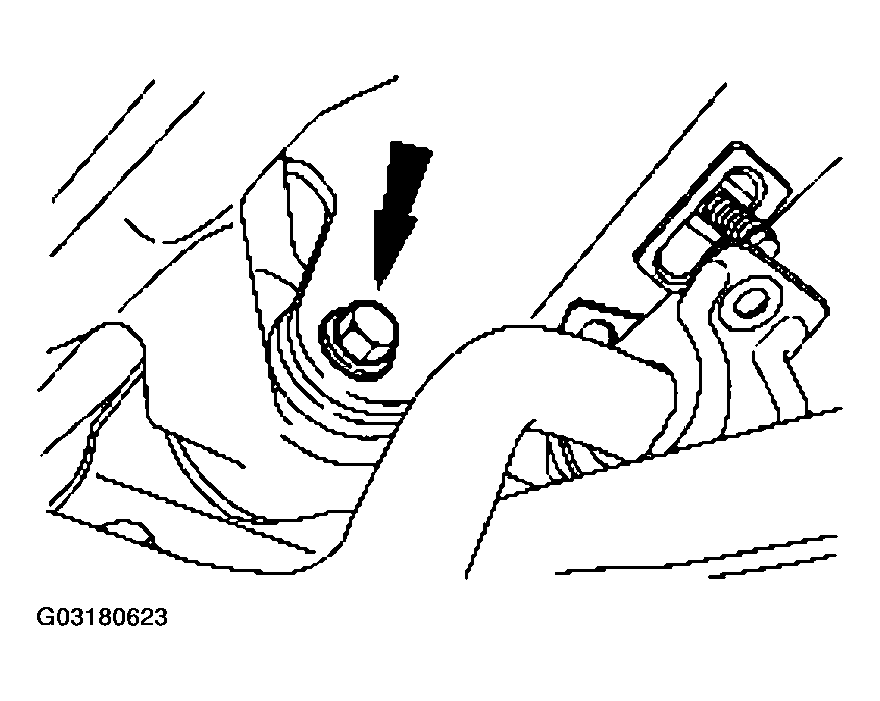

    Fig 12: Removing LH Side Lower Axle Housing Bolt And Nut
    G03180623Courtesy of FORD MOTOR CO.
  14. Remove the LH side upper axle housing axle bolt and nut. Discard the bolt and nut.
    • Lower the axle.
    Fig 13: Removing LH Side Upper Axle Housing Axle Bolt And Nut
    G03180624Courtesy of FORD MOTOR CO.
  15. Remove the lower block cradle.
