Removal and Installation

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the battery ground cable. For additional information, refer to BATTERY DISCONNECT .
  2. Remove the air cleaner outlet pipe. For additional information, refer to INTAKE AIR, FUEL CHARGING, STARTING AND ENGINE ELECTRONICS - 4.0L SOHC .
  3. Remove the parts in the order indicated in the following illustrations and tables.

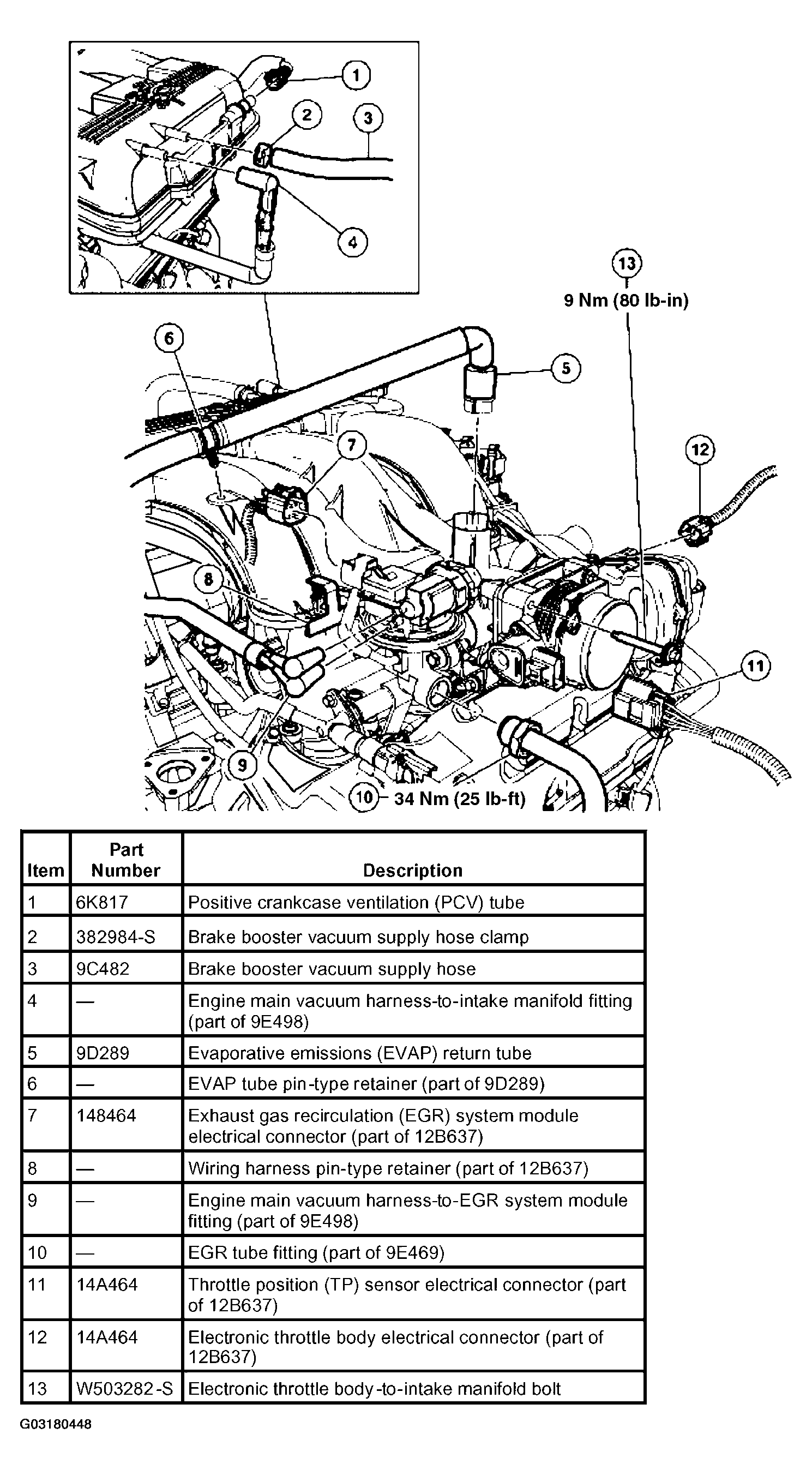

    Fig 1: Removing Intake Manifold (1 Of 2)
    G03180448Courtesy of FORD MOTOR CO.
    Fig 2: Removing Intake Manifold (2 Of 2)
    G00562795Courtesy of FORD MOTOR CO.
  4. To install, reverse the removal procedure.
