Removal and Installation

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transmission. For additional information, refer to AUTOMATIC TRANSMISSION - 5R55S .
  2. Remove the parts in the order indicated in the following illustration and table.

    To remove individual parts, only carry out the listed steps:

    PART IDENTIFICATION

    Part Steps
    Flexplate 1-2
    Crankshaft rear seal 1-5

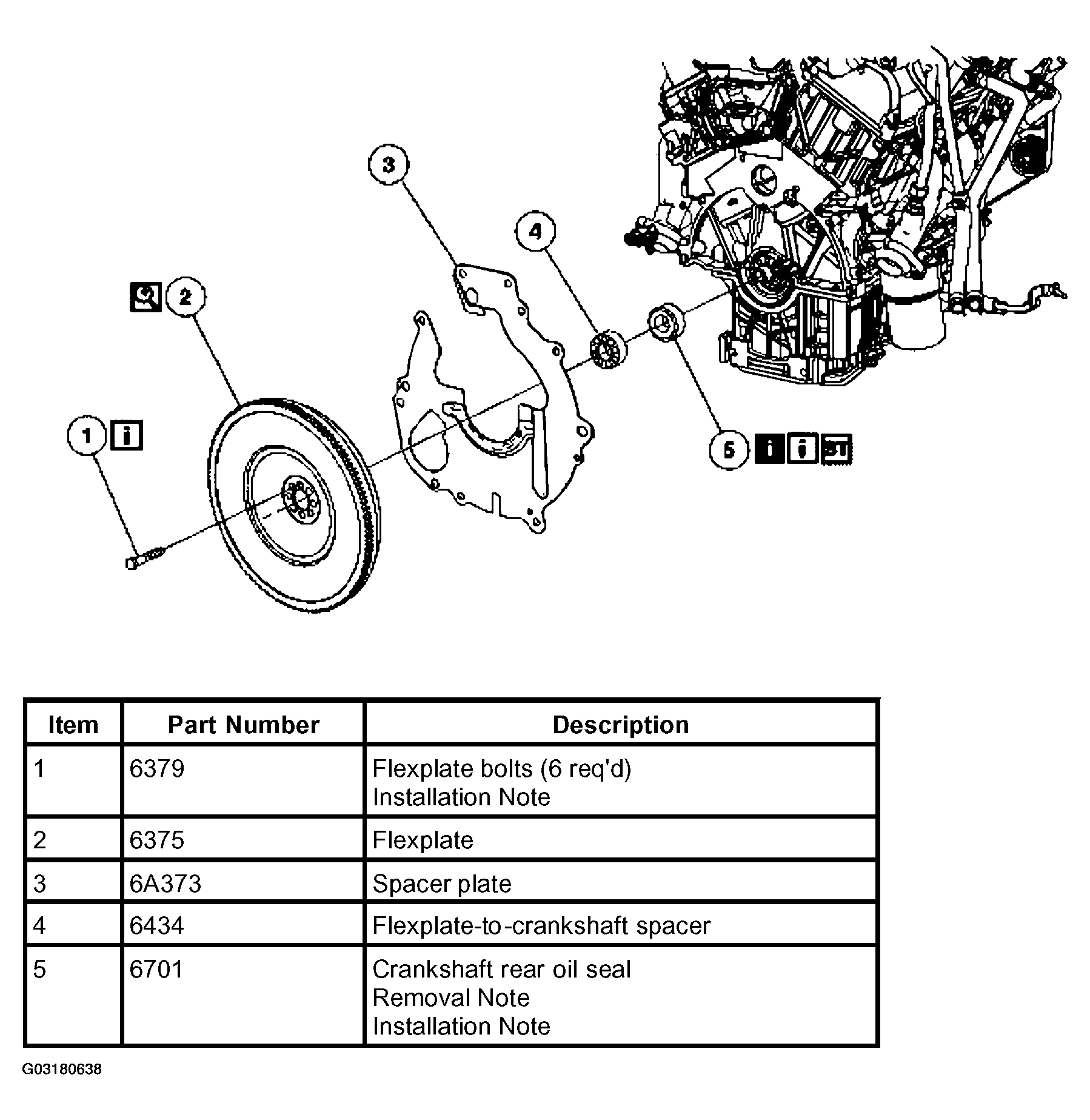

    Fig 1: Removing Flexplate and Crankshaft Rear Seal
    G03180638Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
