Removal and Installation

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the exhaust gas recirculation (EGR) tube. For additional information, refer to EXHAUST GAS RECIRCULATION (EGR) VALVE .
  2. Remove the parts in the order indicated in the following illustration and table.

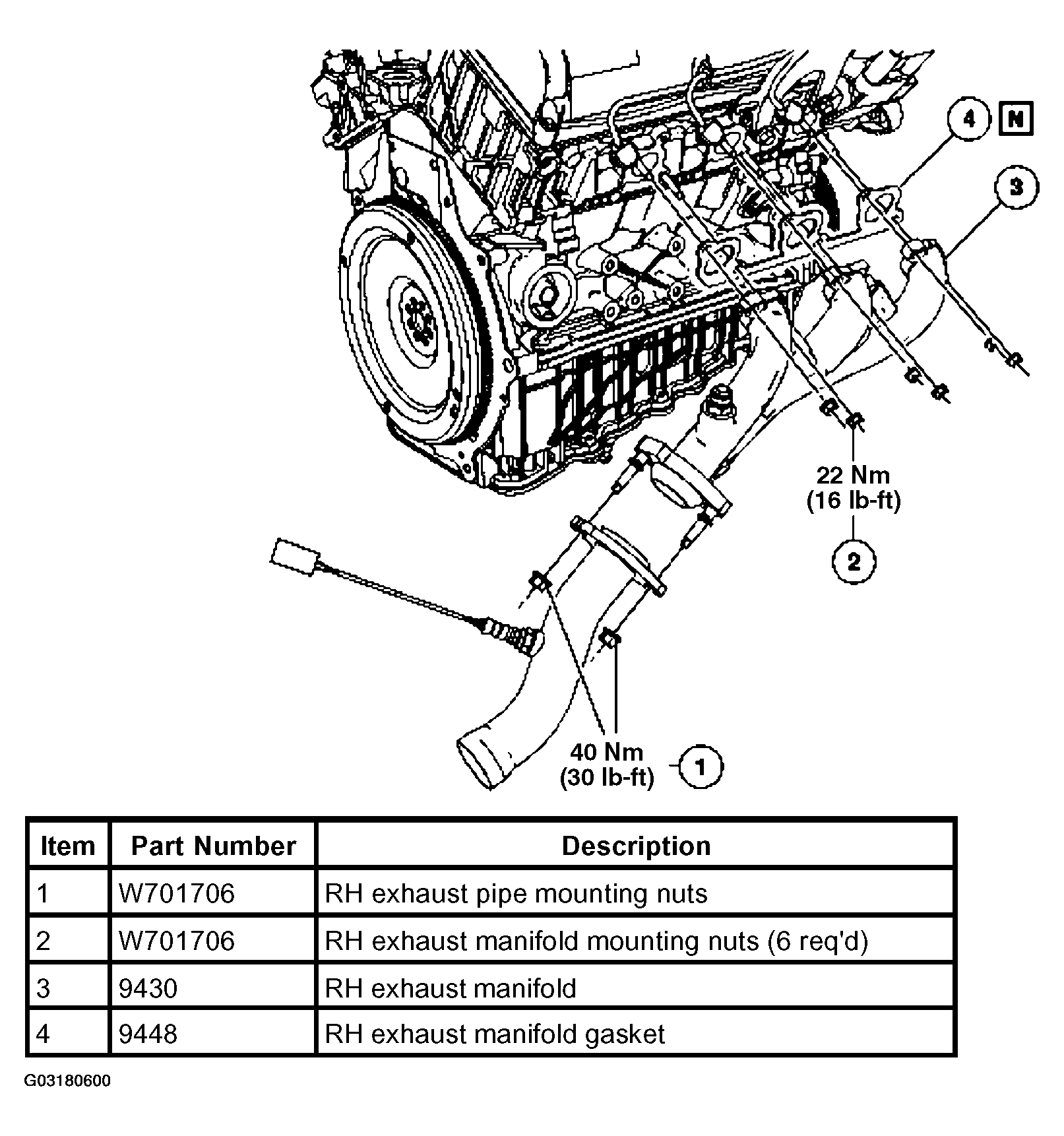

    Fig 1: Removing Exhaust Manifold RH
    G03180600Courtesy of FORD MOTOR CO.
  3. To install, reverse the removal procedure.
  4. Install the EGR tube. For additional information, refer to EXHAUST GAS RECIRCULATION (EGR) VALVE .
