Exhaust Gas Recirculation (EGR) Valve: Notes

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the parts in the order indicated in the following illustration and table.

    To remove individual parts, only carry out the listed steps:

    BEARING SPECIFICATIONS

    Part Steps
    Exhaust gas recirculation (EGR) system module 1-3, 6-8
    EGR system module-to-exhaust manifold tube 3-5

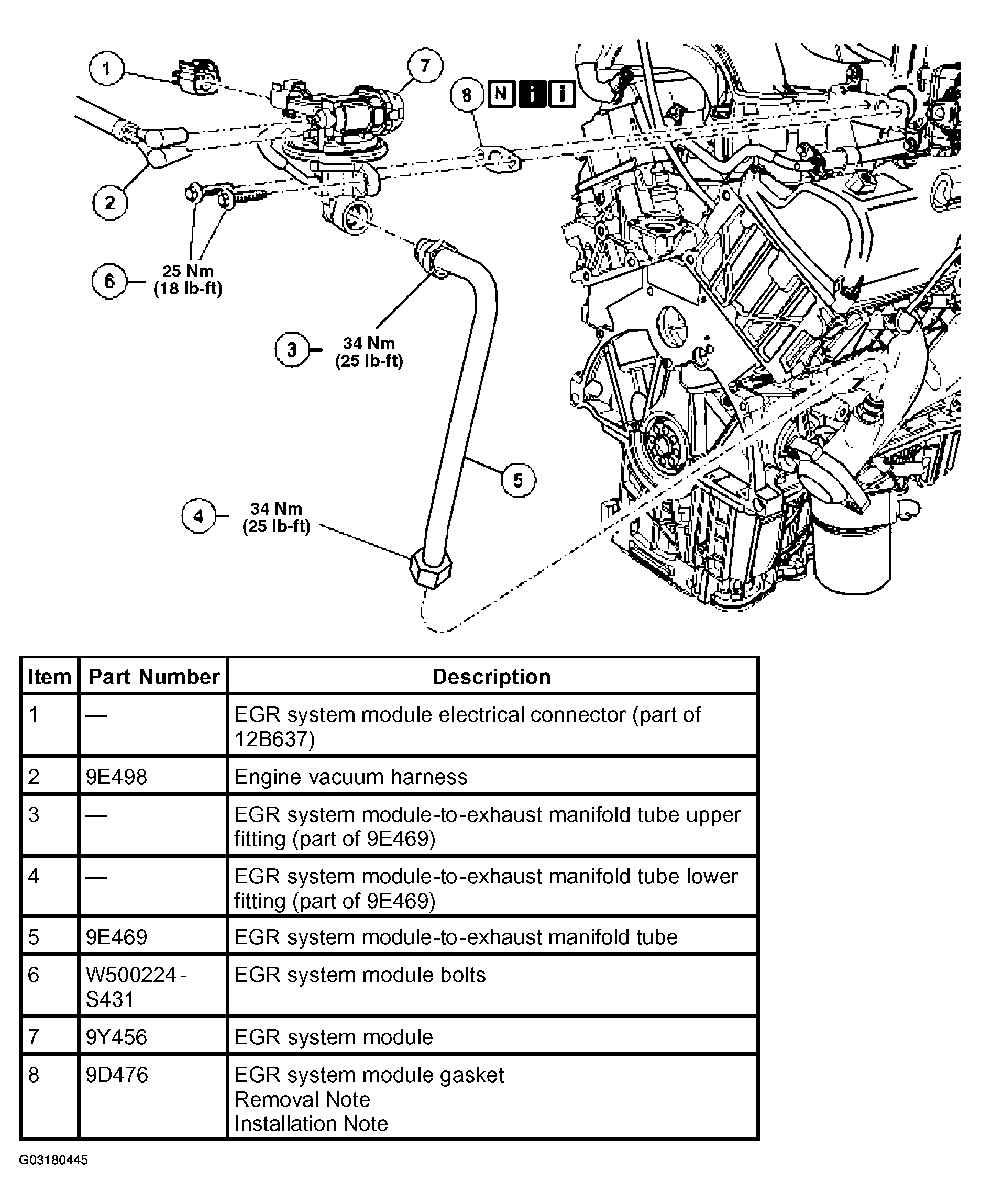

    Fig 1: Removing Exhaust Gas Recirculation (EGR) System Module
    G03180445Courtesy of FORD MOTOR CO.
  2. To install, reverse the removal procedure.
