Item 6: Axle Housing Removal Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
    WARNING: Secure the axle to the jack with a safety strap. Failure to follow these instructions can result in personal injury.
  1. Support the axle housing with a suitable jackstand.
  2. Disconnect the vent hose from the differential housing vent tube.

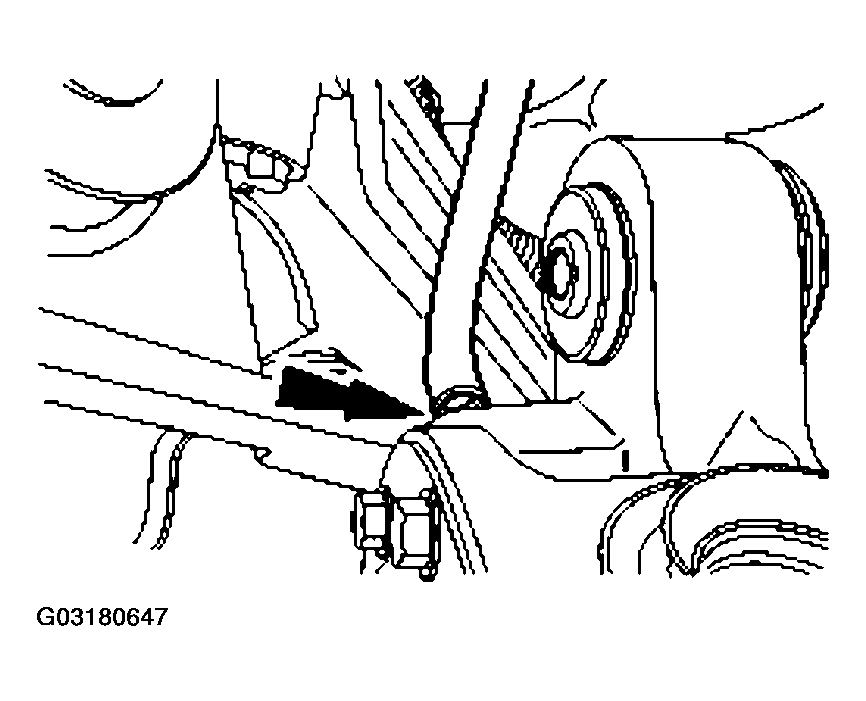

    Fig 1: Disconnecting Vent Hose From Differential Housing Vent Tube
    G03180647Courtesy of FORD MOTOR CO.
  3. Lower the axle housing approximately 25 mm (1 in).
