Item 2: Crankshaft Pulley Removal Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using the special tool and two 8 mm (0.31 in) x 1.25 x 100 mm bolts, remove the crankshaft pulley.

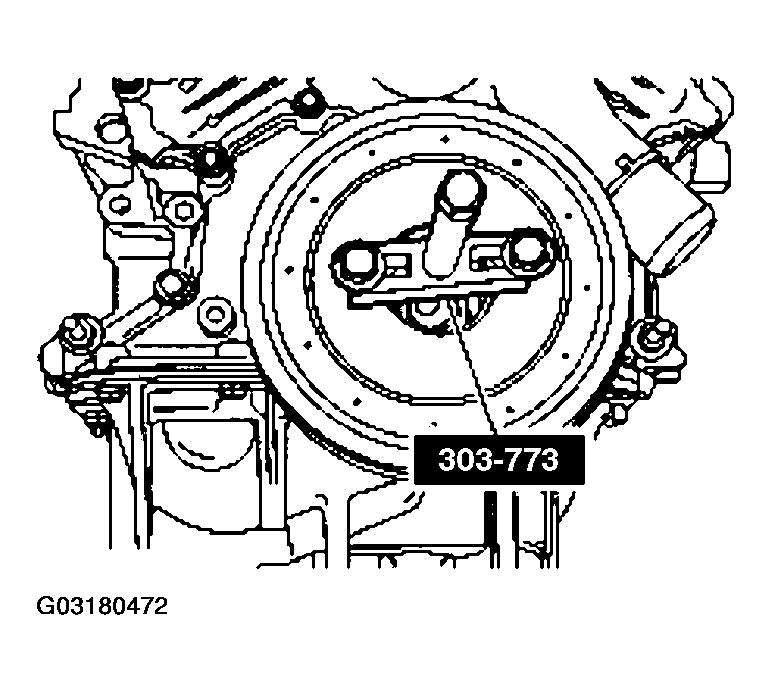

    Fig 1: Removing Crankshaft Pulley
    G03180472Courtesy of FORD MOTOR CO.
