Item 1: Crankshaft Pulley Bolt Removal Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the bolts and position the power steering cooler aside.

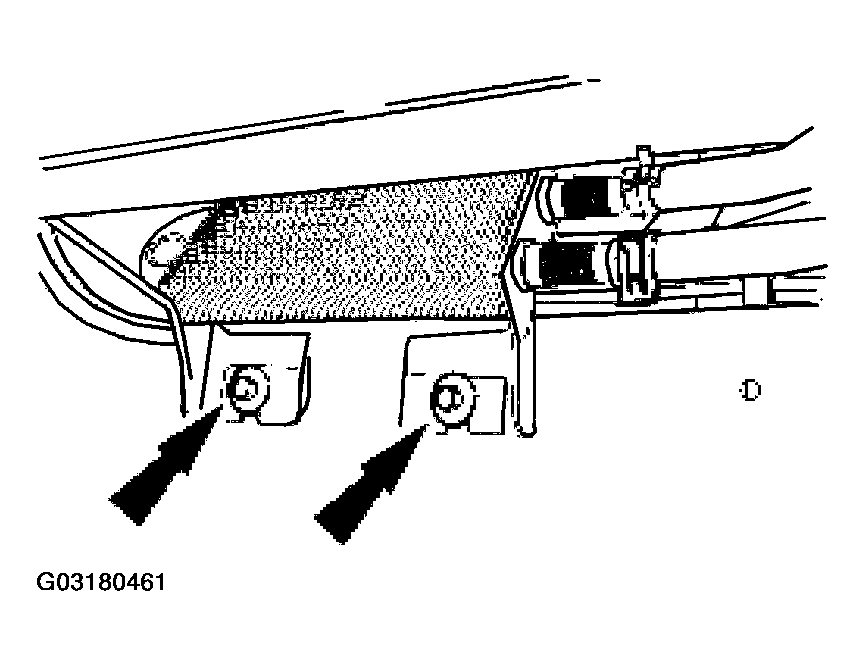

    Fig 1: Removing Bolts And Position Power Steering Cooler
    G03180461Courtesy of FORD MOTOR CO.
    2. CAUTION: This bolt is torque-to-yield and cannot be reused.

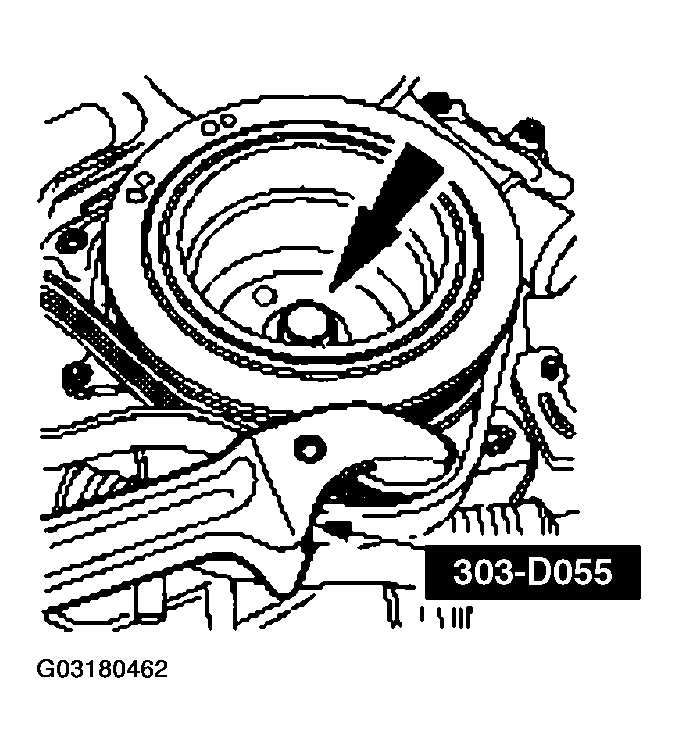

    Fig 2: Removing And Discard Damper Bolt
    G03180462Courtesy of FORD MOTOR CO.
  2. Using the special tool to hold the crankshaft pulley, remove and discard the damper bolt.
