Item 2: Camshaft Roller Follower Removal Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Rotate the crankshaft until the camshaft for the cylinder being serviced is at base circle.

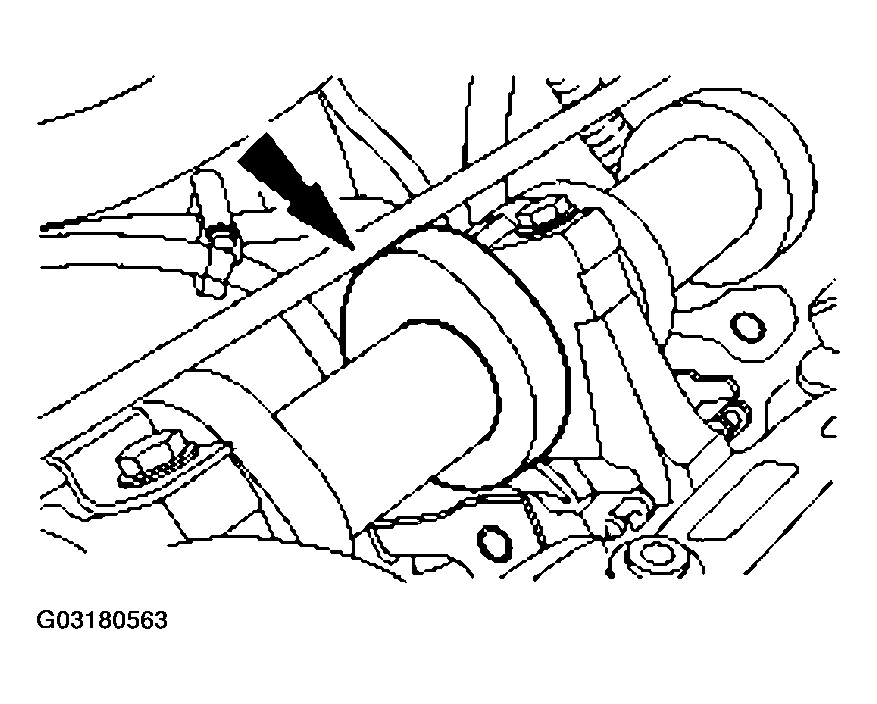

    Fig 1: Rotating Crankshaft Until Camshaft For Cylinder Being Serviced Is At Base Circle
    G03180563Courtesy of FORD MOTOR CO.
    2. NOTE: Mark each camshaft roller follower to make sure it is returned to its original position.

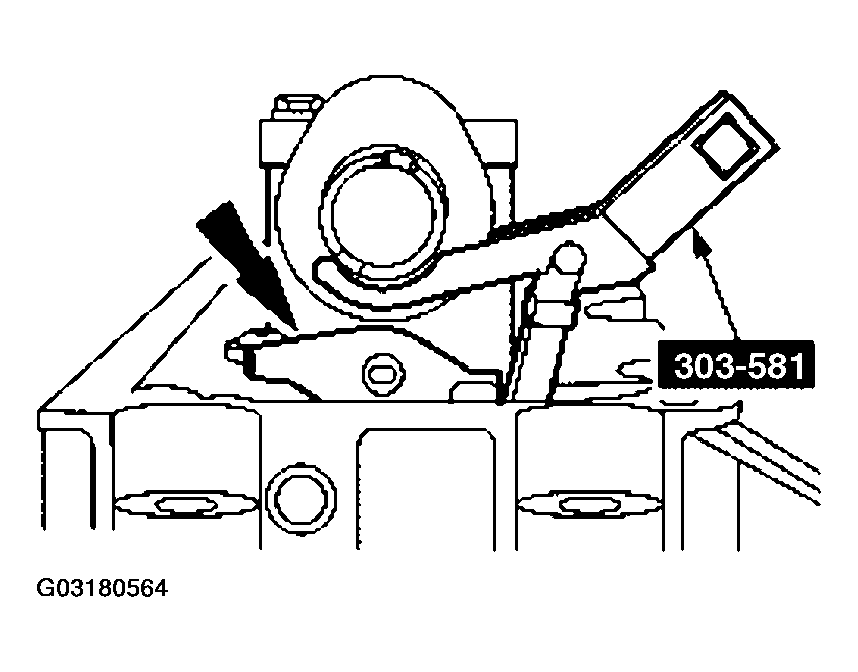

    Fig 2: Removing Camshaft Roller
    G03180564Courtesy of FORD MOTOR CO.
  2. Using the special tool, remove the camshaft roller followers.
