Item 3: Jackshaft Sprocket Bolt Removal Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Use the special tool to keep the crankshaft from turning while loosening the jackshaft bolt.

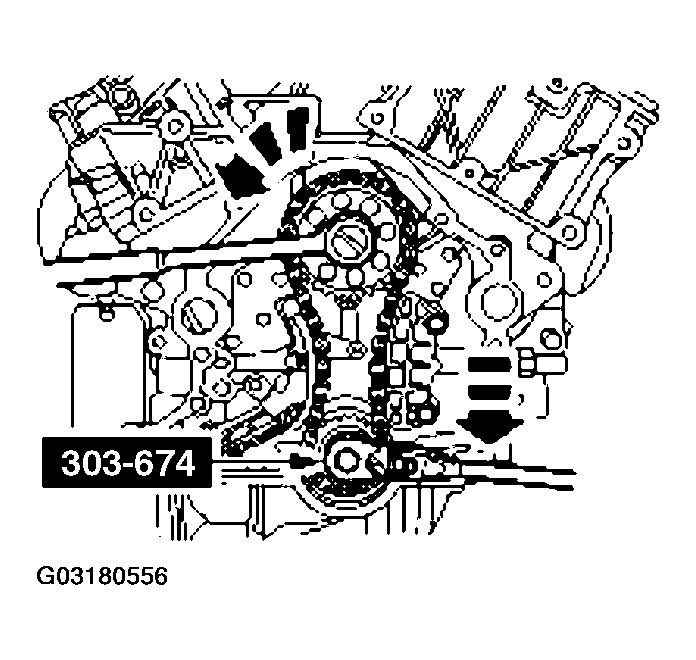

    Fig 1: Removing Crankshaft Sprocket Bolt
    G03180556Courtesy of FORD MOTOR CO.
