Items 10, 11 and 12: Camshaft Bearing Cap Mounting Bolts, Oil Supply Tube and Camshaft Bearing Caps Disassembly Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: Mark the position of the camshaft bearing caps so they can be installed in the original position.

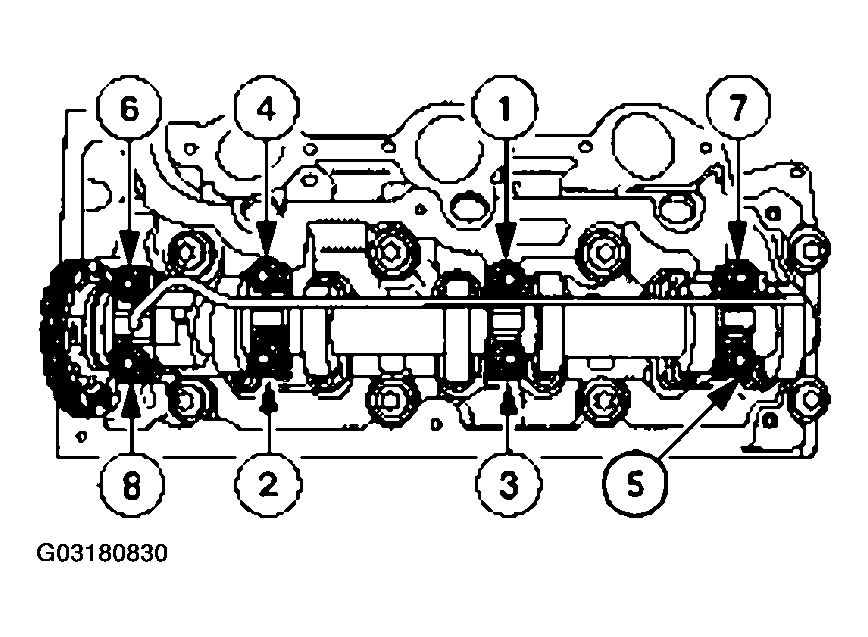

    Fig 1: Removing Camshaft Bearing Caps
    G03180830Courtesy of FORD MOTOR CO.
  1. Remove the bolts in the sequence shown and remove the camshaft bearing caps.
