Disassembly and Assembly

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Prior to assembly, coat all of the valve train components with clean engine oil.
    NOTE: LH cylinder head shown, RH cylinder head similar.

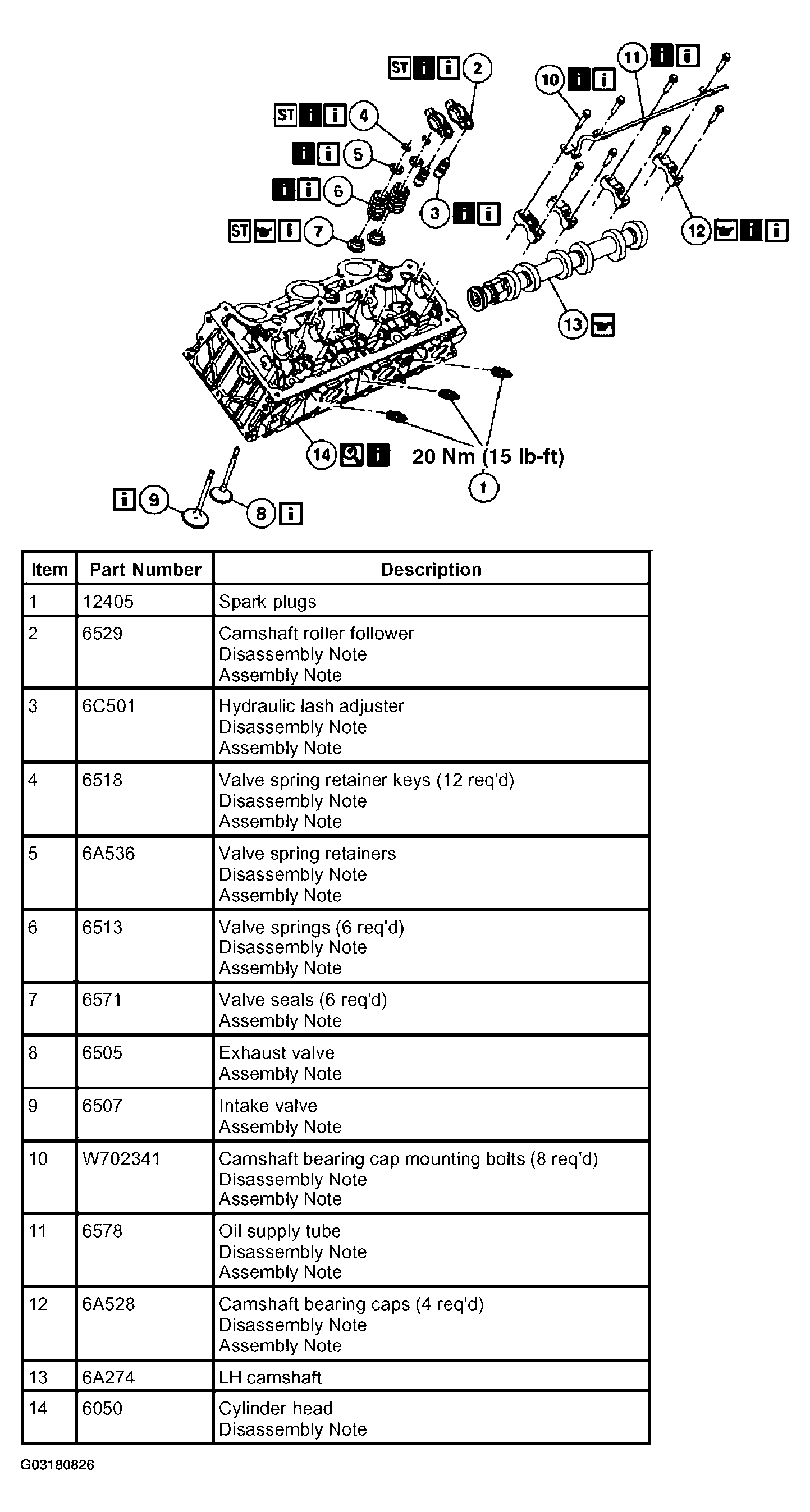

    Fig 1: Disassembling LH Cylinder Head RH Cylinder Head
    G03180826Courtesy of FORD MOTOR CO.
  1. Disassemble the parts in the order listed in the following illustration and table.
    2. NOTE: Install the camshaft roller followers only after the cylinder head is installed in the vehicle and the timing procedure has been carried out.
  2. To assemble, reverse the disassembly procedure.
