Exhaust Manifold - Inspection

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

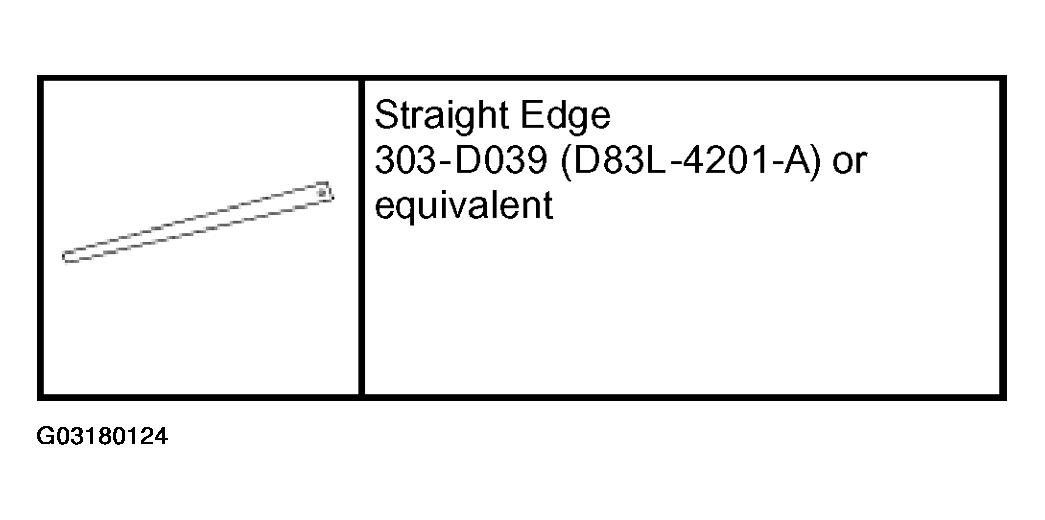

Fig 1: Identifying Special Tool
G03180124Courtesy of FORD MOTOR CO.
  1. Place a straight edge across the exhaust manifold flanges and check for warping with a feeler gauge.

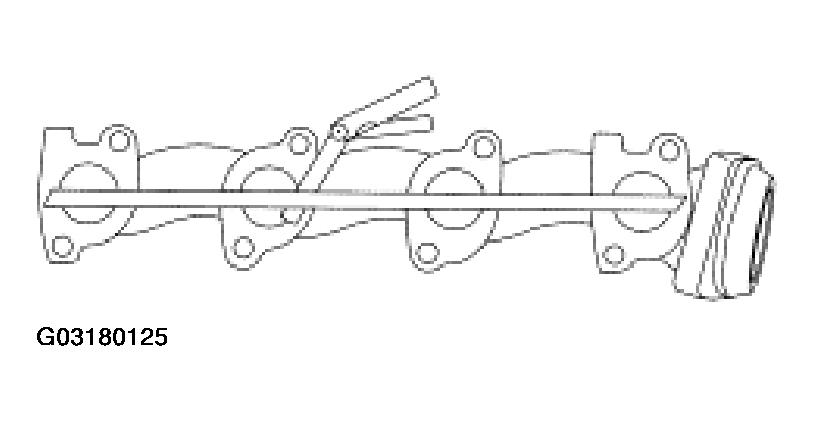

    Fig 2: Placing Straight Edge Across Exhaust Manifold Flanges
    G03180125Courtesy of FORD MOTOR CO.
