Crankshaft - End Play

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

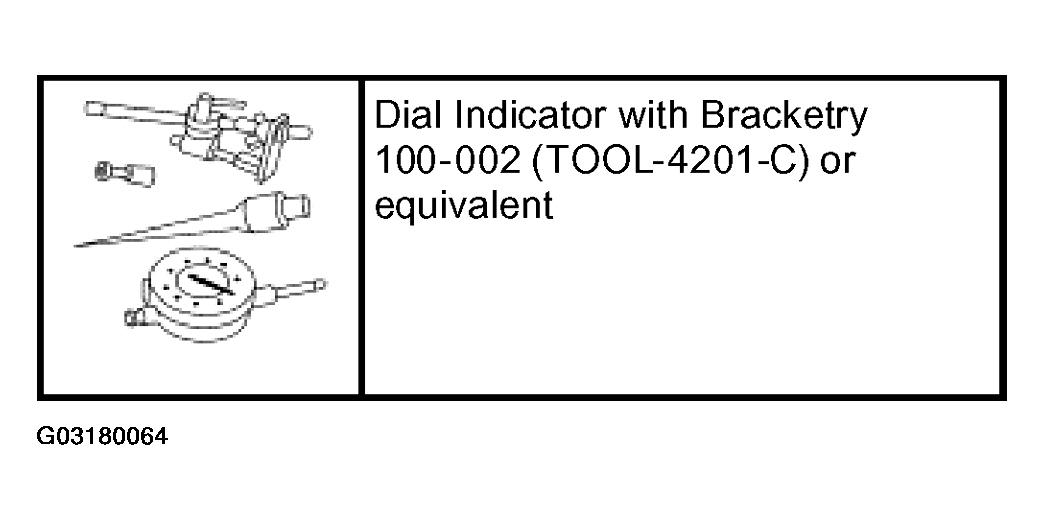

Fig 1: Identifying Special Tool
G03180064Courtesy of FORD MOTOR CO.
  1. Measure the crankshaft end play. Use a Dial Indicator with Bracketry to measure crankshaft end play.
  2. Position the crankshaft to the rear of the cylinder block.
  3. Zero the indicator.
  4. Move the crankshaft to the front of the cylinder block. Note and record the crankshaft end play.
    • If crankshaft end play exceeds specifications, install a new crankshaft thrust washer (6334) or crankshaft thrust main bearing (6337).

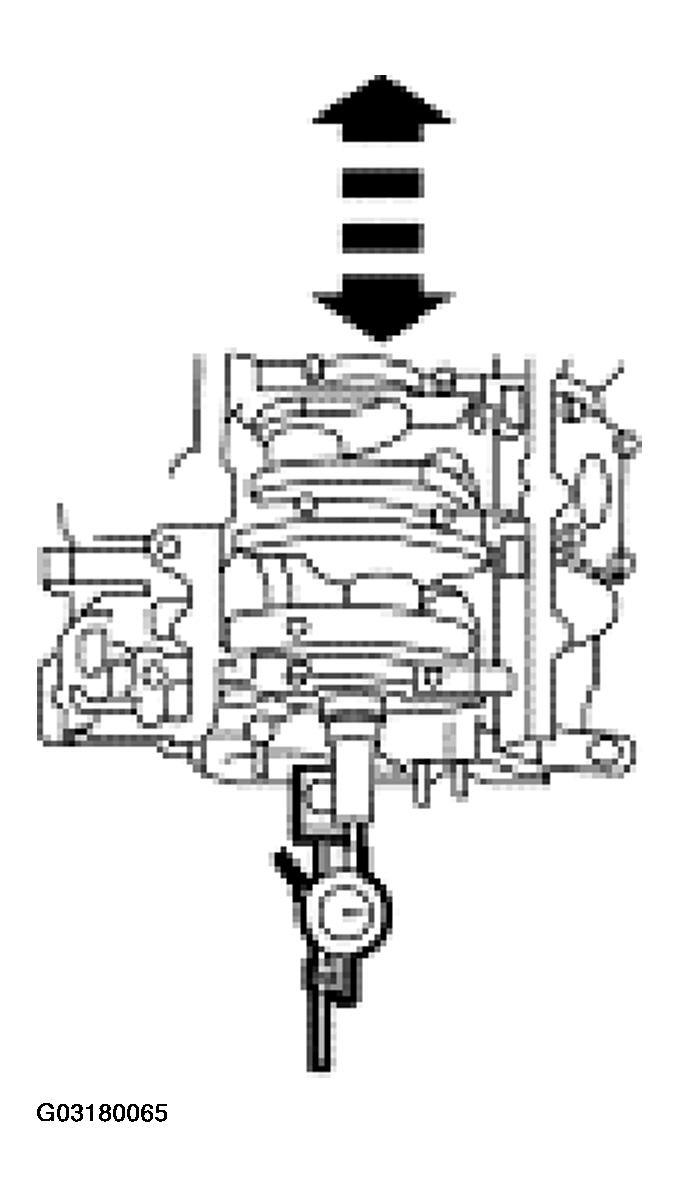

    Fig 2: Measuring Crankshaft End Play
    G03180065Courtesy of FORD MOTOR CO.
