Camshaft - Lobe Lift

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

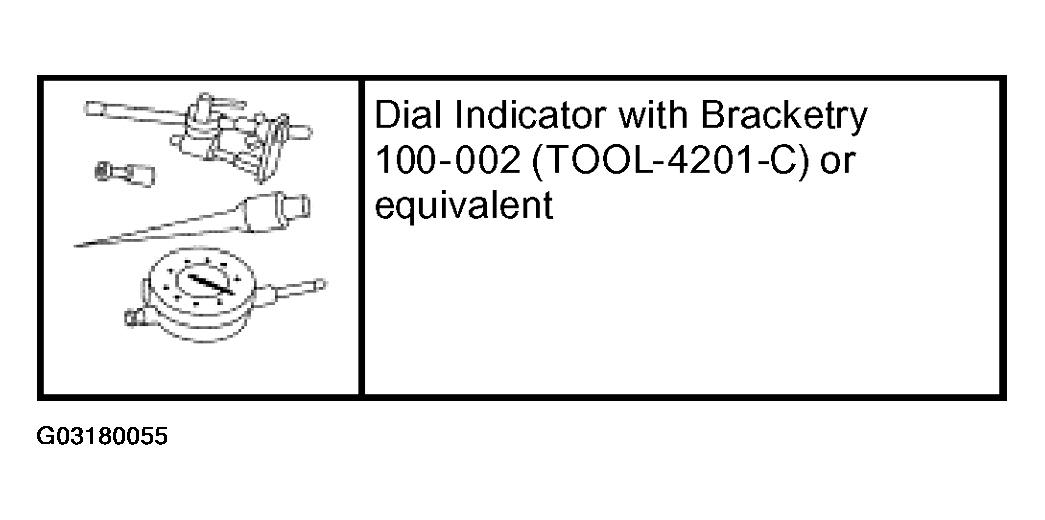

Fig 1: Identifying Special Tool

Courtesy of FORD MOTOR CO.

Use a Dial Indicator with Bracketry to measure camshaft intake/exhaust lobe lift.
- Rotate the camshaft and subtract the lowest indicator reading from the highest indicator reading to figure the camshaft lobe lift.

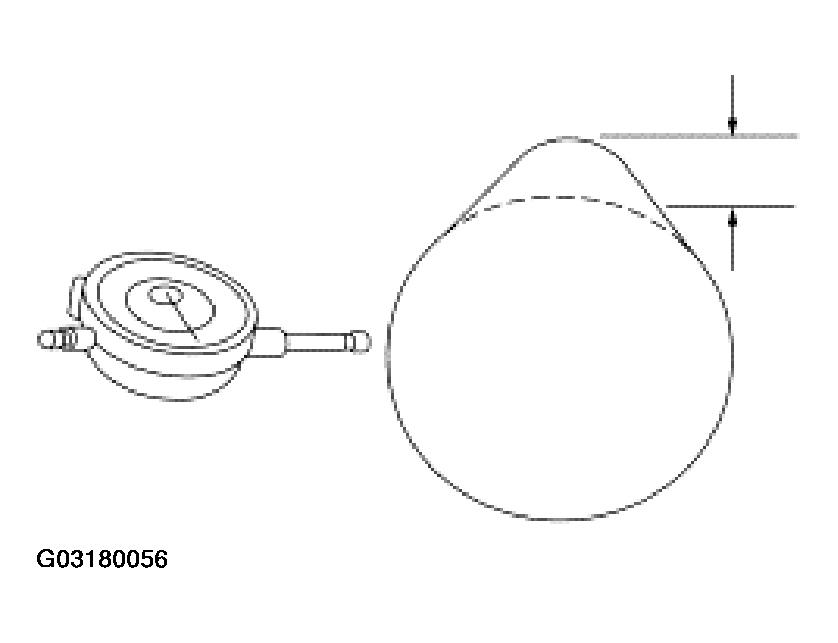

Fig 2: Measuring Camshaft Intake/Exhaust Lobe Lift Using Special Tool
Courtesy of FORD MOTOR CO.
