Camshaft - End Play, Push Rod Engines

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

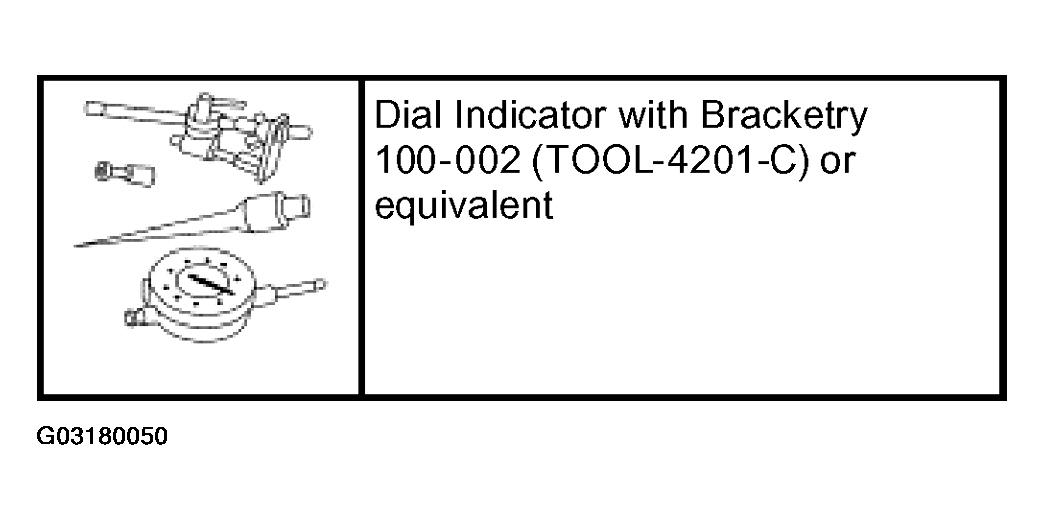

Fig 1: Identifying Special Tool
G03180050Courtesy of FORD MOTOR CO.
  1. Remove the valve tappets.
  2. Use a Dial Indicator with Bracketry to measure camshaft end play.
  3. Position the camshaft to the rear of the cylinder block.
  4. Zero the indicator.
  5. Move the camshaft to the front of the cylinder block. Note and record the camshaft end play.
    • If camshaft end play exceeds specifications, install a new camshaft thrust plate (6269).

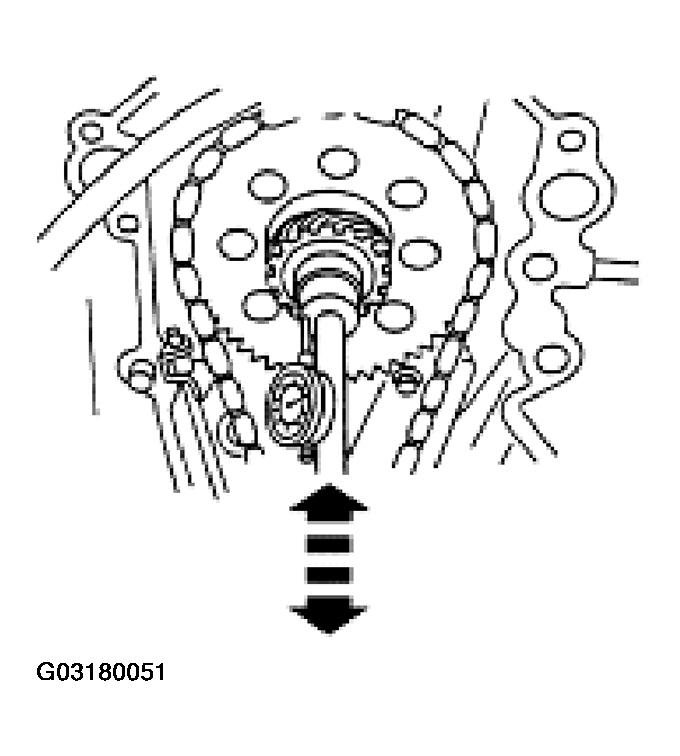

    Fig 2: Measuring Camshaft End Play - Push Rod Engine
    G03180051Courtesy of FORD MOTOR CO.
