Item 21: Pump Bolts Removal Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the nuts and position the bracket and cable aside.
    • Remove the pump bolts.

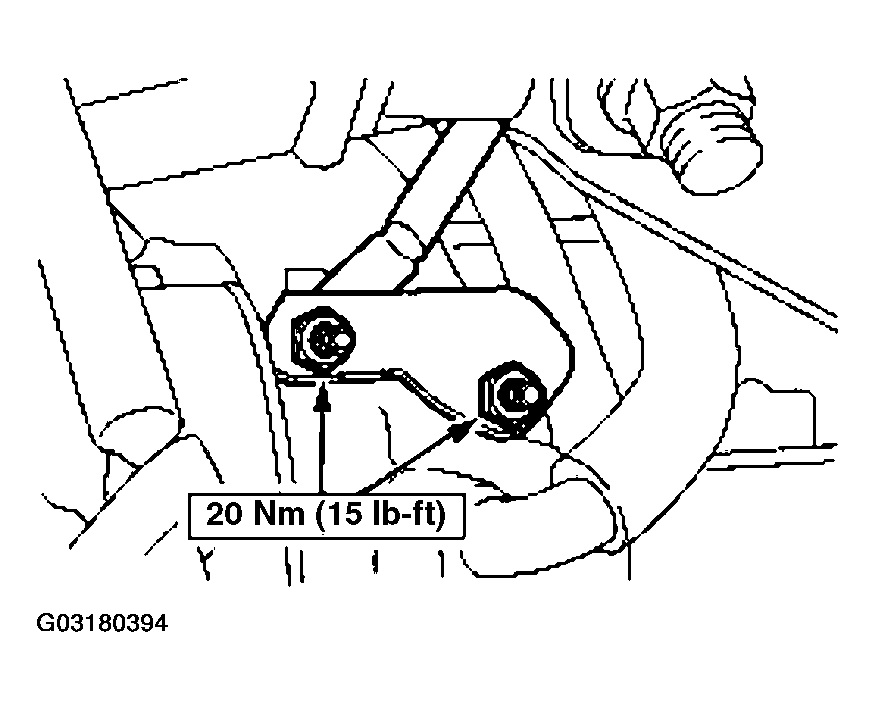

    Fig 1: Removing Pump Bolts
    G03180394Courtesy of FORD MOTOR CO.
