Power Steering Pump - 4.0L SOHC: Notes

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Special Tool(S)

Courtesy of FORD MOTOR CO.

CAUTION: While repairing the power steering system, care should be taken to prevent the entry of contaminants or premature failure of the power steering components can result.

With the vehicle in NEUTRAL, position the vehicle on a hoist. For additional information, REFER to JACKING & LIFTING

Remove the parts in the order indicated in the following illustration and table.

To remove individual parts, only carry out the listed steps:

PARTS SPECIFICATION

Part	Steps
Power steering pump	4-5, 11, 15-21
Power steering pump pulley	15-16
Power steering fluid reservoir	1-6
Power steering fluid cooler	7, 9-10
Steering gear-to-cooler line	7,8, 12, 14
Fluid cooler-to-reservoir hose	2,3,7
Reservoir-to-pump hose	4-5
Pressure line	11-18

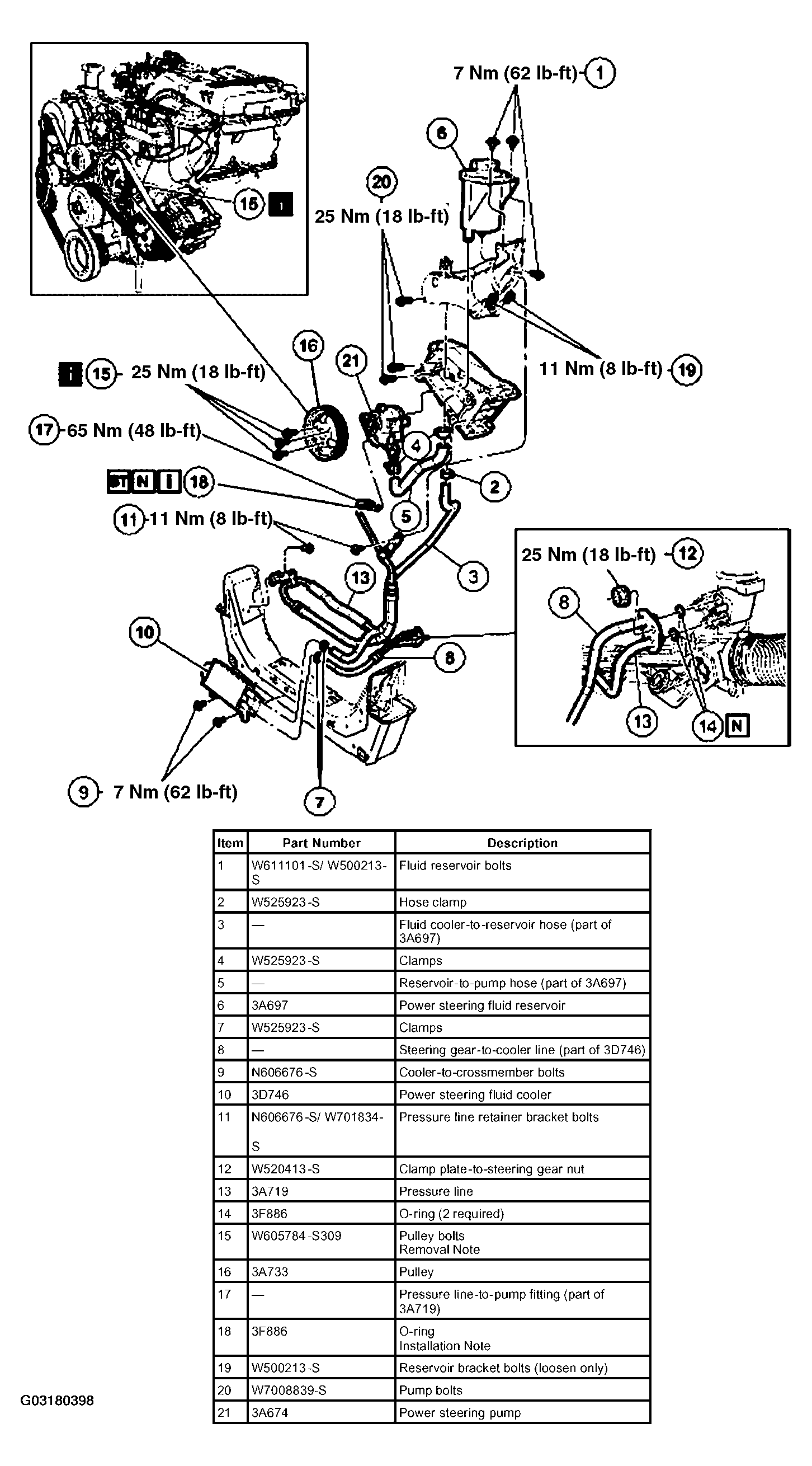

Fig 2: Identifying Removal Order Of Power Steering Pump - 4.0L SOHC

Courtesy of FORD MOTOR CO.

To install, reverse the removal procedure.
Fill and leak test the system. For additional information, Refer to POWER STEERING SYSTEM FILLING .
