Item 8: Brake Disc Shield Installation Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. If installing a new shield, cut the new brake disc shield at the perforations.
  2. Position the shield halves and install two bolts, part number W505321-S426, in each shield half.

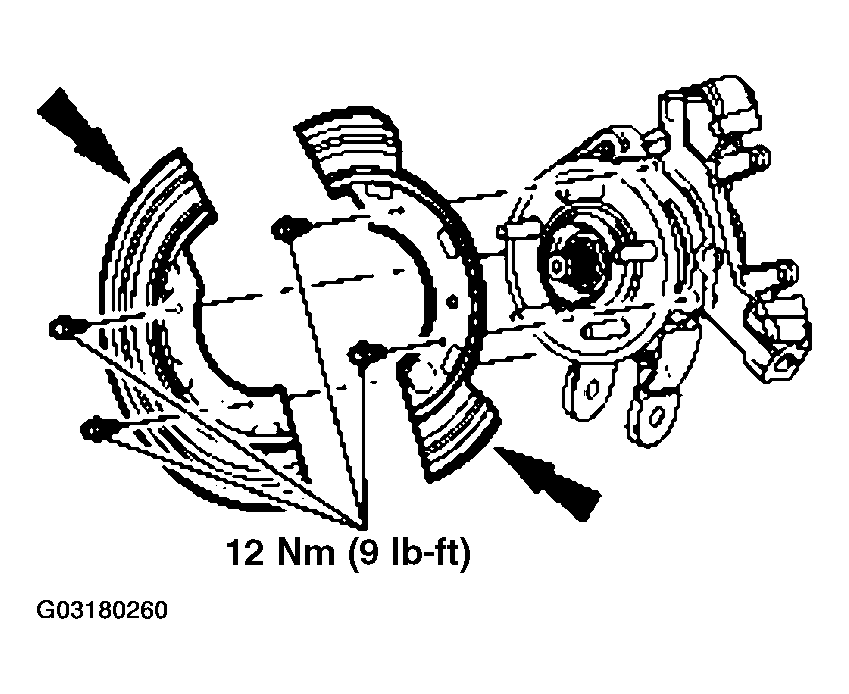

    Fig 1: Installing Bolts
    G03180260Courtesy of FORD MOTOR CO.
  3. Install the parking brake shoes. For additional information, refer to PARKING BRAKE .
