Item 6: Parking Brake Control Removal Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the parking brake switch electrical connector.
  2. Remove the screw and position the bracket and wiring connector aside.

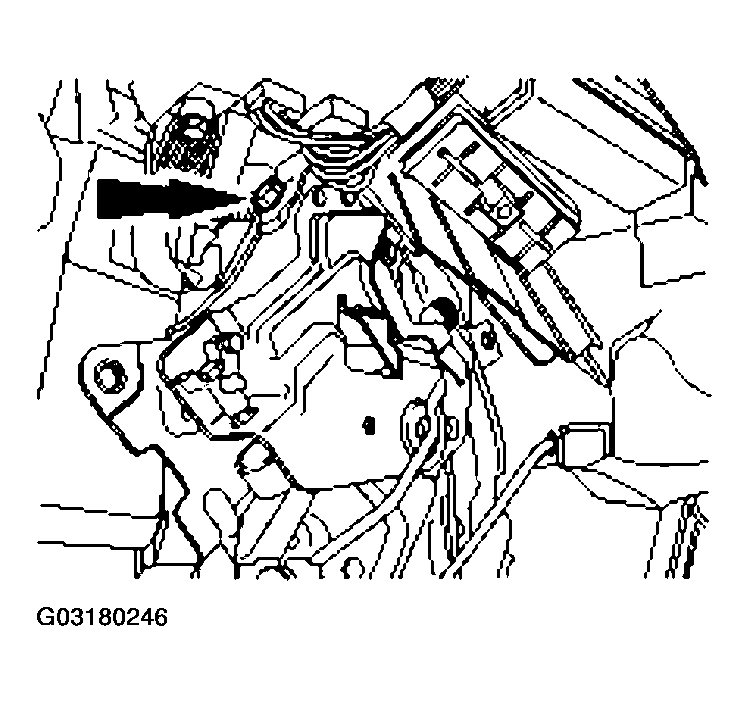

    Fig 1: Removing Screw
    G03180246Courtesy of FORD MOTOR CO.
