Item 6: Parking Brake Control Installation Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the bracket, connect the parking brake switch electrical connector and install the screw.

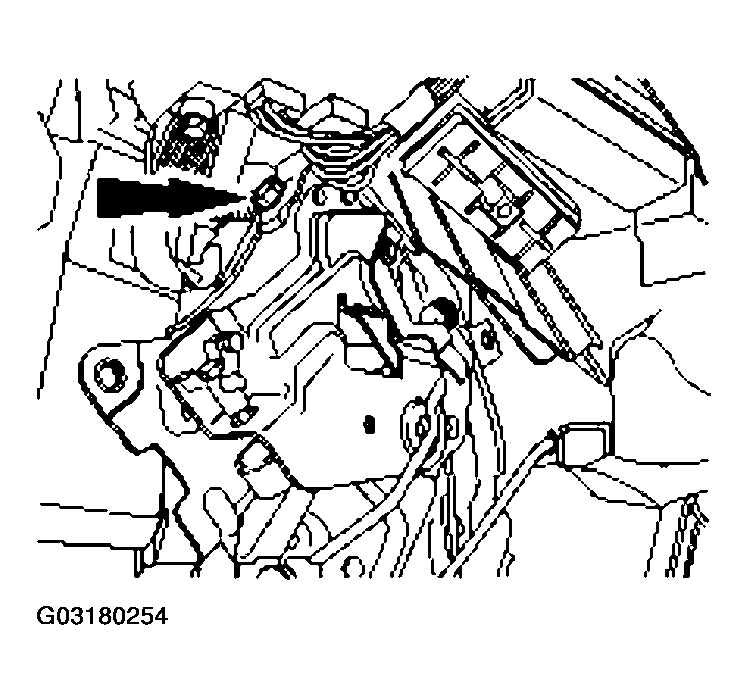

    Fig 1: Installing Screw
    G03180254Courtesy of FORD MOTOR CO.
