Item 5: Parking Brake Control Bolts Installation Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the instrument panel-to-body harness electrical connector.

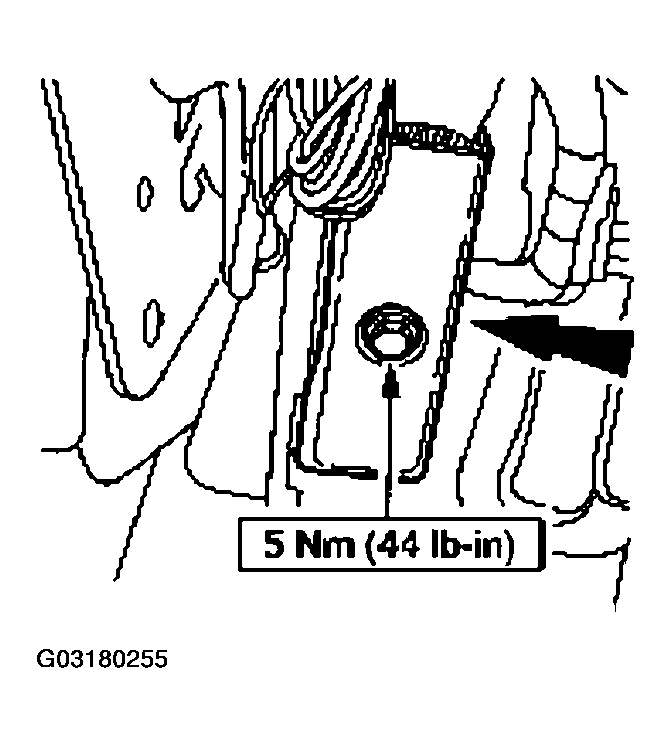

    Fig 1: Tightening Bolt With Torque Specification
    G03180255Courtesy of FORD MOTOR CO.
  2. Connect the battery. For additional information, REFER to BATTERY & CHARGING SYSTEM .
