Item 10 and 14: Rear Parking Brake Cable Removal Note

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

Unclip the parking brake rear cable and conduit from the parking brake lever.

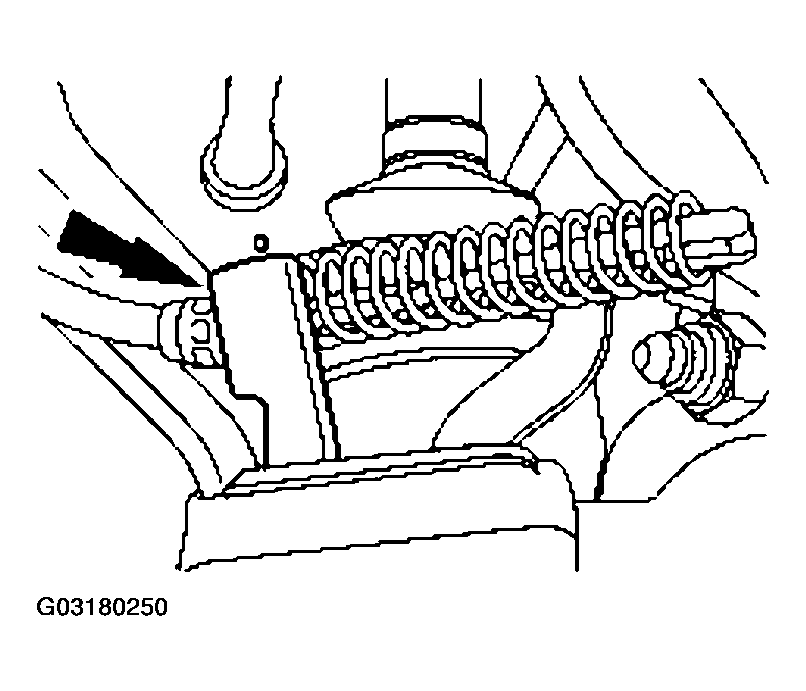

Fig 1: Uncliping Parking Brake Rear Cable And Conduit From Parking Brake Lever
Courtesy of FORD MOTOR CO.
Compress the clip and release the parking brake rear cable and conduit from the parking brake lever.

Fig 2: Compressing Clip And Release Parking Brake Rear Cable
Courtesy of FORD MOTOR CO.
