Brake Master Cylinder and Brake Booster: Notes

WARNING: This page is about a different car, the 2004 Mercury Mountaineer and 2004 Ford Explorer. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery. For additional information, REFER to BATTERY & CHARGING SYSTEM .
Remove the parts in the order indicated in the following illustration and table.

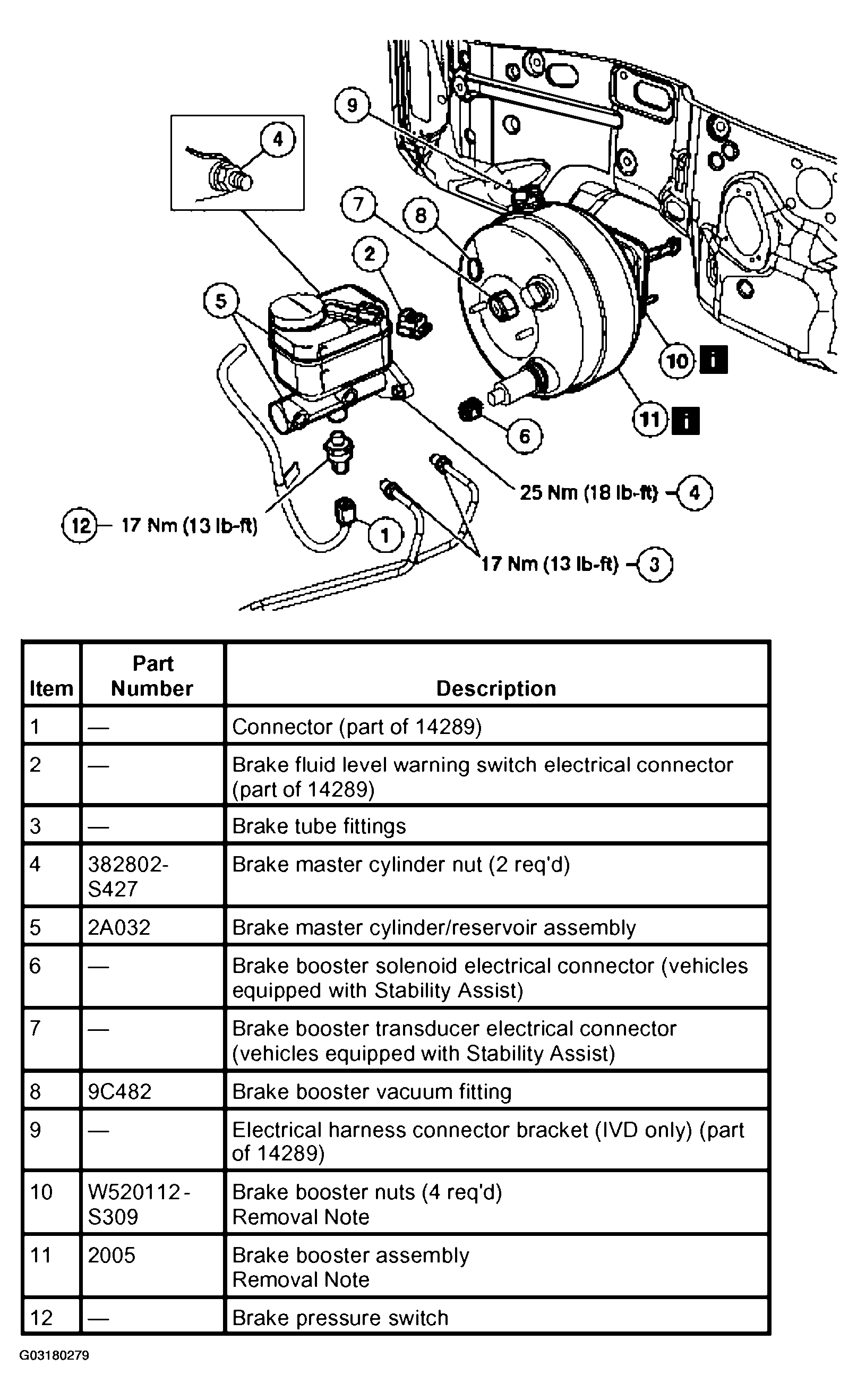

Fig 1: Identifying Removal Order Of Brake Master Cylinder And Brake Booster (1 Of 2)
Courtesy of FORD MOTOR CO.

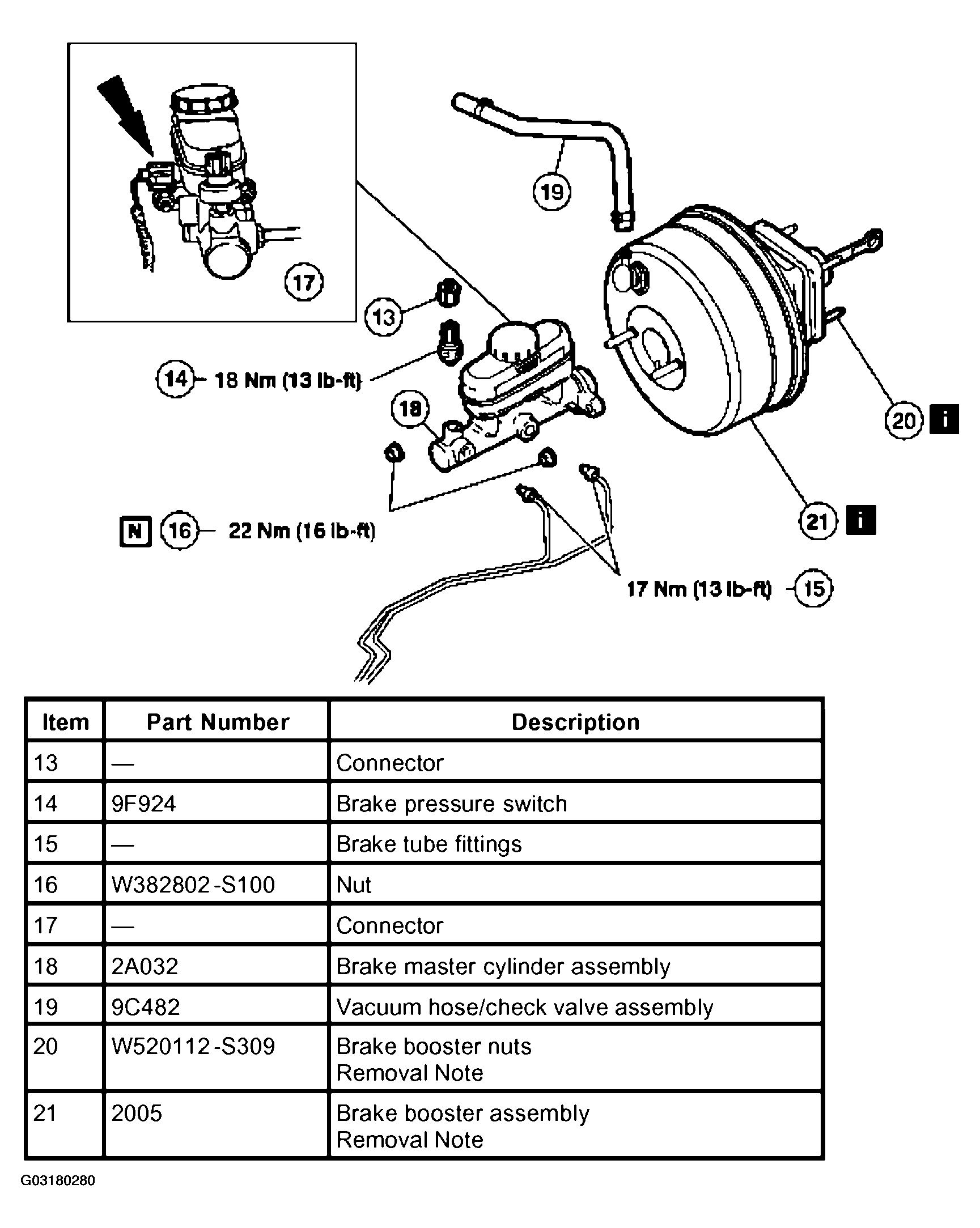

Fig 2: Identifying Removal Order Of Brake Master Cylinder And Brake Booster (2 Of 2)
Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
Bleed the brake system. For additional information, refer to BRAKE SYSTEM BLEEDING .
